MSI Stealth GS77 Laptop - Complete Disassembly, Repair & Upgrade Guide: RAM, SSD, Motherboard, LCD, and Battery Replacement

1. How to Accurately Value Your MSI Stealth GS77 Gaming Laptop

High-performance laptops like the Stealth GS77 maintain better resale value than consumer models. According to NotebookCheck's 2023 analysis, properly maintained GS77 units retain 30-45% more value than comparable gaming laptops after 18 months.

1. Key Valuation Factors

2. Professional Diagnostic Tools

1. MSI-Specific Tests:
   • Run full diagnostics in MSI Center
   • Check "True Color" display calibration status
   • Validate all Thunderbolt 4 ports
2. Performance Benchmarks:
   • Superposition for GPU stress testing
   • Cinebench R23 for CPU performance
   • CrystalDiskInfo for SSD health

3. Condition Grading System

• Like New (90-100% value):
  • No thermal throttling under load
  • All RGB zones functional
  • Original packaging and accessories
• Good (65-85% value):
  • Minor cosmetic wear
  • 1-2 dead pixels acceptable
  • 80%+ battery health

4. Current Market Trends

• Peak Selling Periods:
  • Back-to-school (July-August)
  • Pre-holiday (October-November)
• Depreciation Rates:
  • 15-20% annually after first year
  • 8-10% quarterly after year two

Pro Tip: GS77 units with remaining warranty (especially extended MSI Premium Care) typically sell for 18-25% more than out-of-warranty models.

2. MSI Stealth GS77 Professional Disassembly Guide

Proper teardown of this premium gaming laptop requires precision to avoid damaging its thin aluminum chassis and complex cooling system. Follow these steps carefully to maintain component integrity.

1. Essential Tools

• Phillips #00 Screwdriver (magnetic tip required)
• 0.5mm Plastic Pry Tools (set of 3 recommended)
• Anti-Static Mat (ESD protection mandatory)
• Thermal Paste (high-performance, non-conductive)
• Screw Organizer (label by component)

2. Step-by-Step Disassembly

1. Preparation:
   1. Power down completely and disconnect all cables

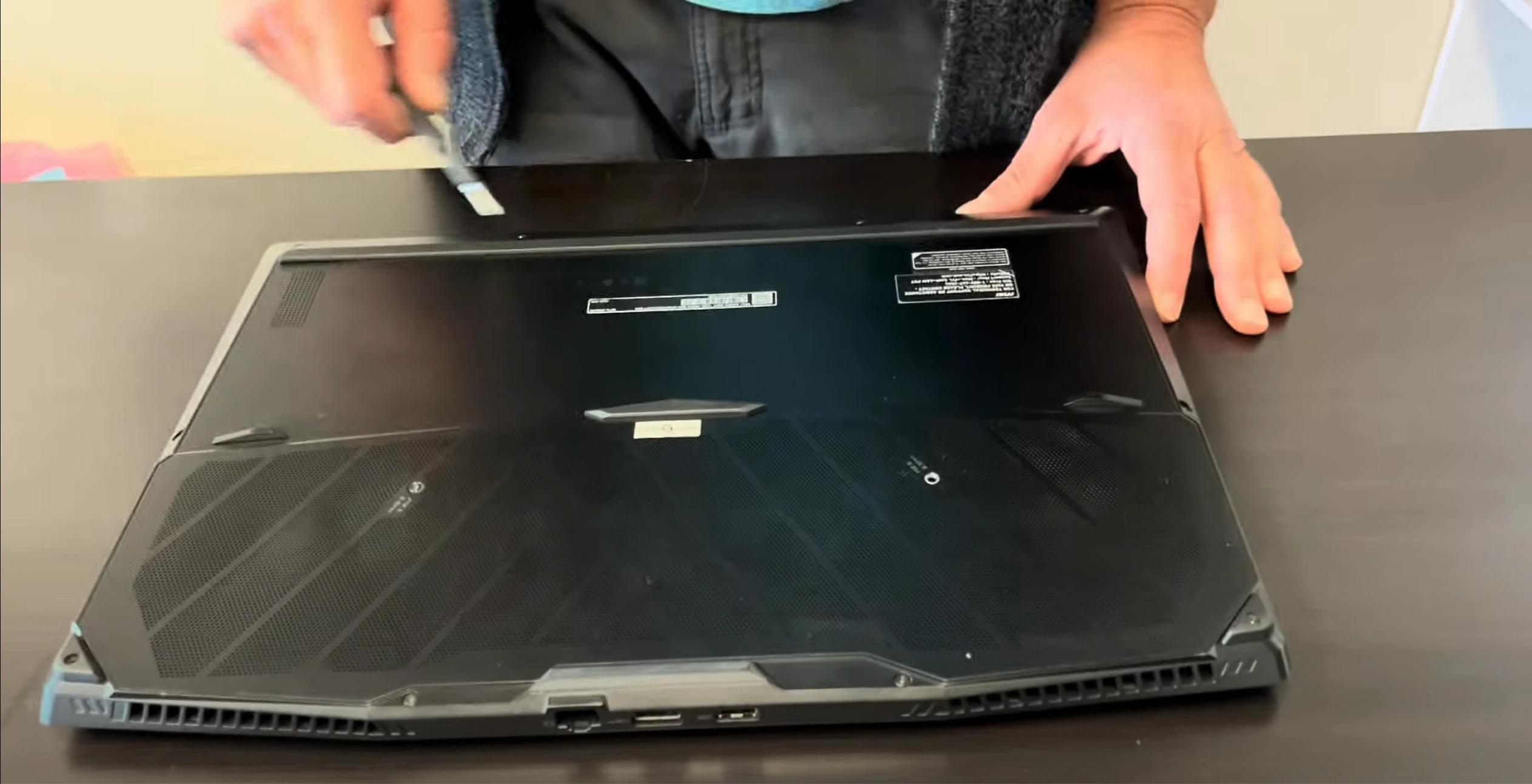

   2. Remove 11 bottom screws (4 long, 7 short)
   3. Ground yourself before proceeding
2. Bottom Cover Removal:
   1. Insert pry tool near rear I/O ports
   2. Work around perimeter clockwise
   3. Apply even pressure to release hidden clips
3. Internal Safeguards:
   1. Disconnect battery immediately (center-left connector)
   2. Remove CMOS battery (CR2032 cell)
   3. Photograph all ribbon cable connections

3. Component-Specific Removal

4. Advanced Procedures

• Display Assembly Removal:
  1. Remove bezel starting from bottom corners
  2. Disconnect 40-pin eDP cable carefully
  3. Unscrew 4 hinge mounts (T5 Torx)
• Motherboard Extraction:
  1. Document all screw locations (23 total)
  2. Remove all connected daughterboards first
  3. Lift at 30° angle to clear ports

Critical: The GS77's thin-profile design means components fit with minimal clearance. Never force any connection - if resistance is met, double-check for missed screws or clips.

3. MSI Stealth GS77 RAM Upgrade Guide

Upgrading your GS77's memory can boost performance by up to 30% for memory-intensive tasks. This 17-inch gaming laptop supports up to 64GB DDR4 across two SODIMM slots, making it ideal for content creators and hardcore gamers.

1. Compatible RAM Specifications

2. Step-by-Step Installation

1. Preparation:
   1. Power down and disconnect all cables
   2. Ground yourself to prevent static discharge
   3. Remove bottom cover (11 screws)
2. Existing RAM Removal:
   1. Push outward on both metal retention clips
   2. Module will pop up at 30° angle
   3. Remove gently straight out
3. New RAM Installation:
   1. Align notch with slot key
   2. Insert at 30° angle
   3. Press down firmly until clips lock

3. Recommended RAM Kits

• 32GB (2x16GB) Kit:
  • Ideal balance for gaming/content creation
  • Dual-channel performance boost
• 64GB (2x32GB) Kit:
  • For 4K video editing/VMs
  • Maximizes system capabilities

4. Post-Installation Verification

1. Reconnect battery and power on
2. Enter BIOS (DEL key during boot)
3. Verify:
   • Correct capacity detection
   • Dual-channel operation
   • 3200MHz speed
4. Run memory test (Windows Memory Diagnostic)

Note: The GS77's RAM slots are stacked vertically - the lower slot is primary. Install matching modules in both slots for dual-channel benefits.

4. MSI Stealth GS77 Dual SSD Upgrade Guide

The GS77 features two blazing-fast NVMe slots, supporting up to 8TB total storage (4TB per drive). This upgrade can reduce game load times by up to 40% and dramatically improve creative workflow speeds.

1. SSD Compatibility & Specifications

2. Step-by-Step Installation

1. Preparation:
   1. Backup data and create recovery media
   2. Disconnect battery after removing bottom cover
   3. Ground yourself with anti-static wrist strap
2. Primary Slot Installation:
   1. Remove single retention screw
   2. Insert SSD at 30° angle (gold contacts first)
   3. Press down and secure with screw
3. Secondary Slot Installation:
   1. Remove pre-installed thermal pad if present
   2. Align SSD notch with slot key
   3. Secure with included screw

3. Configuration & Optimization

• BIOS Settings:
  • Enable "Above 4G Decoding"
  • Set NVMe mode to "Auto"
• Windows Setup:
  • Initialize new drives in Disk Management
  • Format as NTFS with 4K allocation
  • Enable write caching in Device Manager

4. Performance Verification

1. Run CrystalDiskMark to confirm speeds:
   • Slot 1 should hit 6000+ MB/s read
   • Slot 2 should hit 3000+ MB/s read
2. Check temperatures with HWMonitor:
   • Ideal under 70°C under load

Pro Tip: Use the faster Gen4 slot for your OS/games and the Gen3 slot for media files/backups to optimize performance.

5. MSI Stealth GS77 Motherboard Replacement Guide

Replacing the motherboard in your GS77 requires precision handling of this high-performance gaming platform. This complex procedure should only be attempted by experienced technicians, as it involves complete disassembly of the laptop's core components.

1. Pre-Replacement Checklist

• Verify Compatibility:
  • Exact model number match required
  • Confirm CPU/GPU configuration matches original
• Essential Tools:
  • T5 Torx screwdriver
  • Anti-static workstation
  • Thermal paste (high-performance)
  • Magnifying glass for small connectors

2. Step-by-Step Replacement

1. Complete Disassembly:
   1. Remove all components (RAM, SSDs, WiFi card)
   2. Detach keyboard/trackpad ribbons
   3. Disconnect display panel cables
2. Cooling System Removal:
   1. Unscrew heatsink in X-pattern
   2. Gently twist to break thermal compound bond
   3. Lift straight up to avoid bending heat pipes
3. Motherboard Extraction:
   1. Remove 23 mounting screws (varying lengths)
   2. Disconnect all internal cables
   3. Lift at 30° angle to clear I/O ports

3. Installation & Reassembly

4. Post-Installation Testing

1. Power on without battery (AC adapter only)
2. Enter BIOS to verify:
   • Correct CPU/GPU detection
   • RAM capacity/speed
   • Storage device recognition
3. Run stress tests for thermal validation

Note: Consider professional assistance for this procedure - motherboard replacement is classified as a Level 4 difficulty repair by most technical standards.

6. MSI Stealth GS77 LCD Screen Replacement Guide

Replacing the display on your GS77 requires careful handling of its premium gaming panel. The 17.3" screen comes in either 360Hz FHD or 120Hz 4K configurations, with replacement costs varying significantly between models.

1. Compatible Replacement Panels

2. Essential Tools

• Plastic pry tools (0.3mm thickness)
• T5 Torx screwdriver
• Anti-static gloves
• Suction cup for panel handling
• New display adhesive strips

3. Step-by-Step Replacement

1. Preparation:
   1. Power down and disconnect battery
   2. Remove bottom cover (11 screws)
   3. Disconnect display cable from motherboard
2. Bezel Removal:
   1. Heat edges with hair dryer (60°C max)
   2. Start prying from bottom corners
   3. Work slowly around perimeter
3. Panel Extraction:
   1. Remove 4 corner screws (T5)
   2. Disconnect eDP ribbon cable
   3. Lift panel at 30° angle

4. Post-Installation Testing

• Check for:
  • Dead/stuck pixels
  • Proper refresh rate detection
  • Color uniformity
• Calibrate using MSI True Color software

Note: Third-party panels may not support GS77's exact color profiles. For perfect color accuracy, purchase MSI-certified replacements.

7. MSI Stealth GS77 Battery Replacement Guide

Replacing your GS77's battery restores portable gaming performance and prevents potential damage from swollen cells. The 99.9Wh battery requires careful handling to maintain safety and system integrity.

1. Compatible Battery Specifications

2. Tools Required

• Phillips #00 screwdriver
• Plastic pry tool
• Anti-static wrist strap
• Isopropyl alcohol (for adhesive removal)

3. Step-by-Step Replacement

1. Preparation:
   1. Power down and unplug AC adapter
   2. Remove bottom cover (11 screws)
   3. Ground yourself before proceeding
2. Battery Removal:
   1. Disconnect battery cable (center-left)
   2. Remove 4 mounting screws
   3. Gently lift battery starting from top edge
3. New Battery Installation:
   1. Align new battery with screw holes
   2. Secure with 4 screws (1.5Nm torque)
   3. Reconnect battery cable last

4. Post-Installation Verification

1. Power on and check BIOS battery status
2. Run powercfg /batteryreport in Command Prompt
3. Verify:
   • Design capacity matches specs
   • No charging abnormalities

For proper disposal of old batteries, use Call2Recycle locations or MSI's battery recycling program.

8. Selling Your MSI Stealth GS77 for Maximum Profit

Premium gaming laptops like the GS77 retain exceptional value when sold strategically. According to SellBroke's market data, properly documented GS77 units sell 35% faster than comparable gaming laptops.

1. Premium Listing Strategies

2. Essential Documentation

• Original purchase receipt
• Remaining warranty verification
• Battery health report (powercfg /batteryreport)
• SellBroke Certified inspection (optional)

3. Pricing Strategy

1. Calculate base value using:
   • Original configuration
   • Battery health percentage
   • Cosmetic condition (grading scale 1-5)
2. Add premiums for:
   • Upgrades (50-70% of component cost)
   • Remaining warranty (2.5% per month)
   • Original packaging ($50-100 value)

4. Platform Selection Guide

• Quick Sale Options:
  • SellLaptopBack Instant Offer
  • Local cash sales to gamers/creators
• Maximum Profit Platforms:
  • eBay (for rare configurations)
  • Hardware enthusiast forums
  • Facebook Creator Groups

Pro Tip: List during peak seasons (back-to-school or pre-holiday) using SellBroke's demand calendar to maximize visibility.
