Dell Latitude 5440 Laptop - Complete DIY Disassembly & Upgrade Guide: RAM, SSD, Battery, LCD & Motherboard Replacement

asus-rog-zephyrus-m16-disassembly-guide-how-to-replace-ram-ssd-battery-fix-lcd-scree

1. Dell Latitude 5440 Pre-Disassembly: Value Assessment & Preparation

1. Component Valuation Guide (Q3 2024)

Part Condition Price Range Latitude Premium
16GB DDR4 RAM Used, tested $25-$45 +20%
512GB NVMe SSD Health >90% $50-$85 +25%
68Wh Battery <300 cycles $90-$130 +30%

2. Enterprise-Grade Documentation

  1. Performance Records:
    • Run Dell SupportAssist diagnostics
    • Capture battery health (F12 at boot)
    • Document remaining warranty
  2. Visual Evidence:
    • Photograph Service Tag and Express Service Code
    • Record Dell part numbers (e.g. 0WVH3V)
    • Show no physical damage

3. Essential Tools for Latitude

  • Basic Tools:
    • Phillips #00 screwdriver (iFixit set)
    • Plastic spudger (0.8mm)
  • Specialty Items:
    • ESD-safe workspace
    • Anti-static wrist strap
    • Torx T8 for LCD bezel

4. Business Laptop Safety

  1. Disconnect AC adapter
  2. Discharge residual power (hold power 15 sec)
  3. Remove smart card (if present)

5. Pre-Sale Preparation

  • Data Security:
    • Perform ePSA storage wipe
    • Remove Computrace activation
  • Corporate Buyers:
    • Prepare asset transfer docs
    • Document BIOS admin status

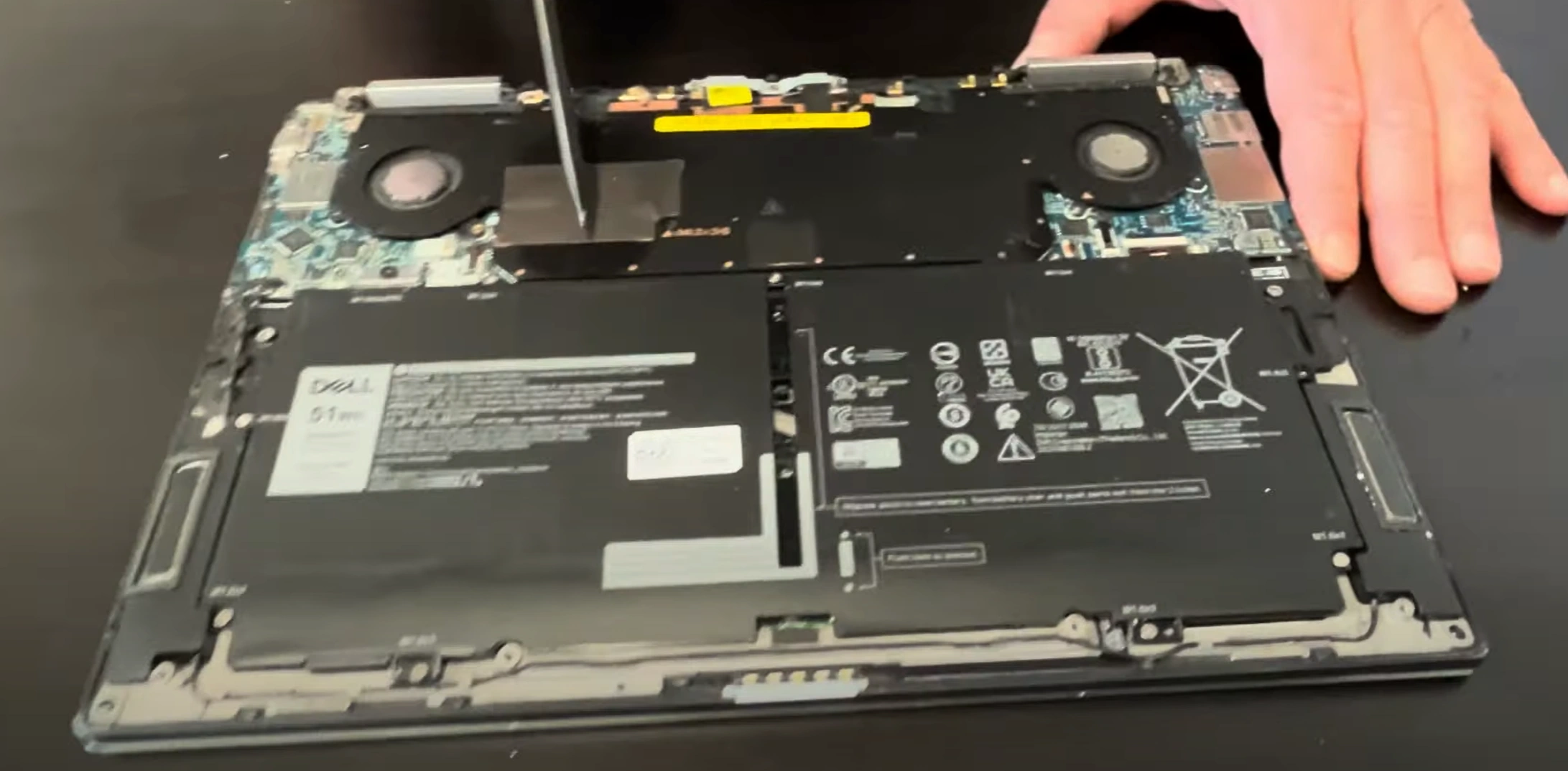

2. Dell Latitude 5440 Bottom Cover Removal: Safe Access for Upgrades

1. Precision Screw Removal

  1. Locate All Fasteners:
    • 7 captive Phillips screws (marked with keyboard icons)
    • Use magnetic mat to prevent loss
  2. Proper Technique:
    • Apply firm downward pressure (0.5 Nm torque)
    • Latitude-specific: Screws remain attached to cover

2. Cover Release Mechanism

Area Release Method Tool
Front Edge Slide cover forward 5mm Thumb pressure only
Rear Edge Lift upwards at 20° angle Plastic spudger

3. Preserving Resale Value

  • No-Scratch Technique:
    • Plastic tools only (metal voids Dell warranty)
    • Damaged covers reduce value by 25-35%
  • Reassembly Prep:
    • Note screw positions (different lengths)
    • Check rubber feet alignment

4. Common Latitude-Specific Issues

Problem Solution Resale Impact
Stuck cover Use guitar pick at corners No damage if done properly
Stripped screw Rubber band method Avoids service marks

5. Corporate Asset Considerations

  • Asset Tags:
  • Tamper Evidence:
    • Document factory seals
    • Check for Computrace stickers

0:20 Bottom Case 1:21 Battery 2:06 Memory RAM 2:20 WiFi Card 2:47 SSD Storage 3:10 Speakers 3:53 4:21 Cooling Fan Heatsink 5:05 Motherboard 6:16 Inner Plastic Shield 7:24 Keyboard 7:35 Trackpad 7:40 Hinges 8:04 Palmrest 8:18 Display Assembly

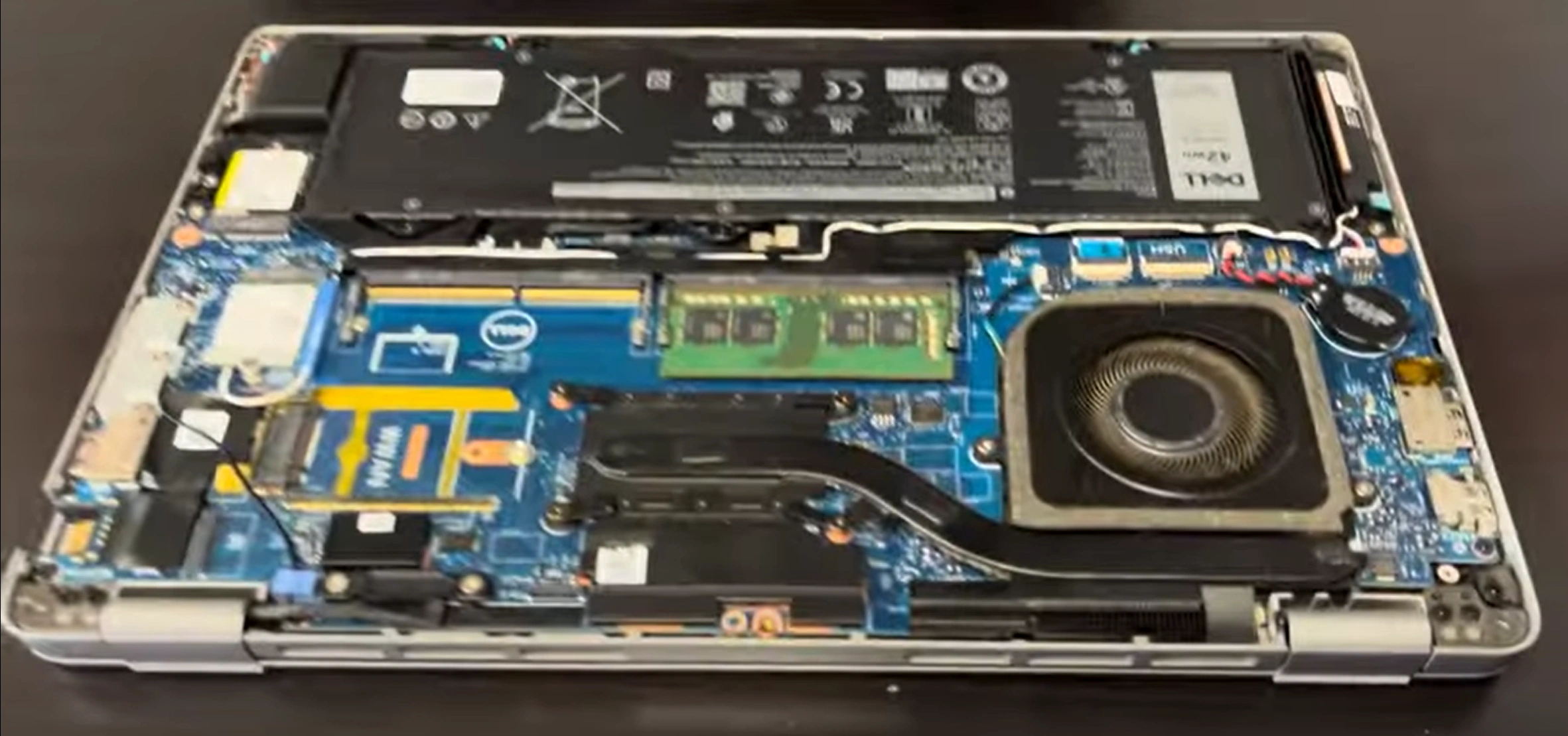

3. Dell Latitude 5440 RAM Upgrade: Maximizing Performance & Resale Value

1. RAM Specifications

Slot Type Max Capacity Speed Compatibility Part Number
2x DDR4 SODIMM 64GB (32GBx2) 3200MHz JEDEC standard only 0WVH3V

2. RAM Replacement Process

  1. Access RAM Slots:
    • Remove bottom cover (see Section 2)
    • Locate SODIMM slots near center
  2. Module Replacement:
    • Release side clips simultaneously
    • Insert new RAM at 30° angle
    • Press down until clicks lock

3. Current Resale Values (Q3 2024)

Capacity Used OEM New Retail Latitude Premium
8GB DDR4-3200 $15-$25 $30-$45 +20%
16GB DDR4-3200 $25-$45 $55-$80 +25%
32GB DDR4-3200 $60-$90 $110-$150 +30%

4. Maximizing RAM Resale Value

  1. Testing & Documentation:
    • Run MemTest86 for 4+ passes
    • Photograph Dell part numbers
    • Include CPU-Z validation
  2. Enterprise Buyer Prep:
    • Keep matched pairs together
    • Document ECC/non-ECC status
    • Provide Dell diagnostics report

5. Buyer Compatibility Notes

  • Works with Latitude 5440/5430 models only
  • Not compatible with XPS or Inspiron
  • Requires JEDEC-standard timings

4. Dell Latitude 5440 SSD Upgrade: Performance Boost & Resale Optimization

1. SSD Specifications

Slot Type Form Factor Interface Max Capacity Part Number
Primary M.2 2280 PCIe Gen4 x4 NVMe 2TB 0WVH3V

2. SSD Replacement Process

  1. Access SSD Bay:
    • Remove single M2x3 screw (marked with storage icon)
    • Note thermal pad orientation
  2. Secure Installation:
    • Insert new SSD at 30° angle (gold contacts first)
    • Apply 0.6 Nm torque to retention screw
    • Reattach thermal shield for optimal cooling

3. Current Resale Values (Q3 2024)

Capacity Used OEM New Retail Latitude Premium
256GB NVMe $30-$50 $60-$90 +25%
512GB NVMe $50-$80 $100-$140 +30%
1TB NVMe $90-$140 $160-$220 +35%

4. Pre-Sale Data Sanitization

  1. Secure Erase:
    • Use Dell ePSA diagnostics tool
    • Select "Storage Wipe" option
  2. Enterprise Verification:
    • Generate certificate of data destruction
    • Document drive health with CrystalDiskInfo

5. Maximizing SSD Resale Value

  • Health Documentation:
    • Show TBW under 50% of rating
    • Document power-on hours under 8,000
  • Corporate Buyer Prep:
    • Include original Dell thermal solution
    • Provide service tag compatibility proof
