Dell Latitude 7520 Laptop – Full Disassembly & Upgrade Guide: RAM, SSD, Battery, LCD & Motherboard Replacement

cash-for-dell-g15-5535-repair-test-upgrade-or-recycle-your-laptop-for-resale

1. Dell Latitude 7520 Pre-Disassembly Preparation

⚠️ Critical Safety Measures

  1. Power Down Properly:
    • Shut down Windows completely
    • Hold power button for 15 seconds to discharge capacitors
  2. ESD Protection:

Required Tools

Tool Purpose HP Equivalent
Torx T5 Case screws Dell part #XGH72
Plastic spudger Clip release Dell service kit

Optimal Workspace Setup

  • Lighting:
    • 500+ lux brightness
    • Adjustable LED lamp recommended
  • Organization:
    • Use magnetic project mat
    • Label screws by location (template provided)

Model Verification

  1. Check service tag on bottom case
  2. Confirm in Dell SupportAssist
  3. Match to technical manual

Time Expectations

  • First-time users: 2-2.5 hours
  • Experienced technicians: 45-60 minutes
  • Battery replacement: Add 30 minutes

Resale Documentation

2. Dell Latitude 7520 Bottom Case Removal

Step 1: Screw Removal Protocol

  1. Identify all fasteners:
    • 8 captive screws (two lengths)
    • 4 long (6mm) near hinges
    • 4 short (4mm) along edges
    • Refer to Dell service manual page 23
  2. Proper technique:
    • Use magnetic T5 Torx screwdriver
    • Apply firm downward pressure (0.6 Nm torque)
    • Organize screws using magnetic mat

Step 2: Hidden Clip Release

Location Release Method Tool
Front edge Insert at 45° near touchpad 0.5mm plastic spudger
Side vents Slide horizontally toward rear iFixit opening picks

Step 3: Safe Case Separation

  1. Initial break:
    • Start near hinge area
    • Use suction cup for grip
    • Lift no more than 1cm initially
  2. Full removal:
    • Maintain 30° angle during lift
    • Watch for fingerprint reader cable
    • Set aside on microfiber cloth

Common Challenges & Solutions

  • Stuck clips:
    • Apply 99% isopropyl with brush
    • Wait 90 seconds before retrying
  • Stripped screws:
    • Use screw extractor
    • Replace with Dell OEM screws

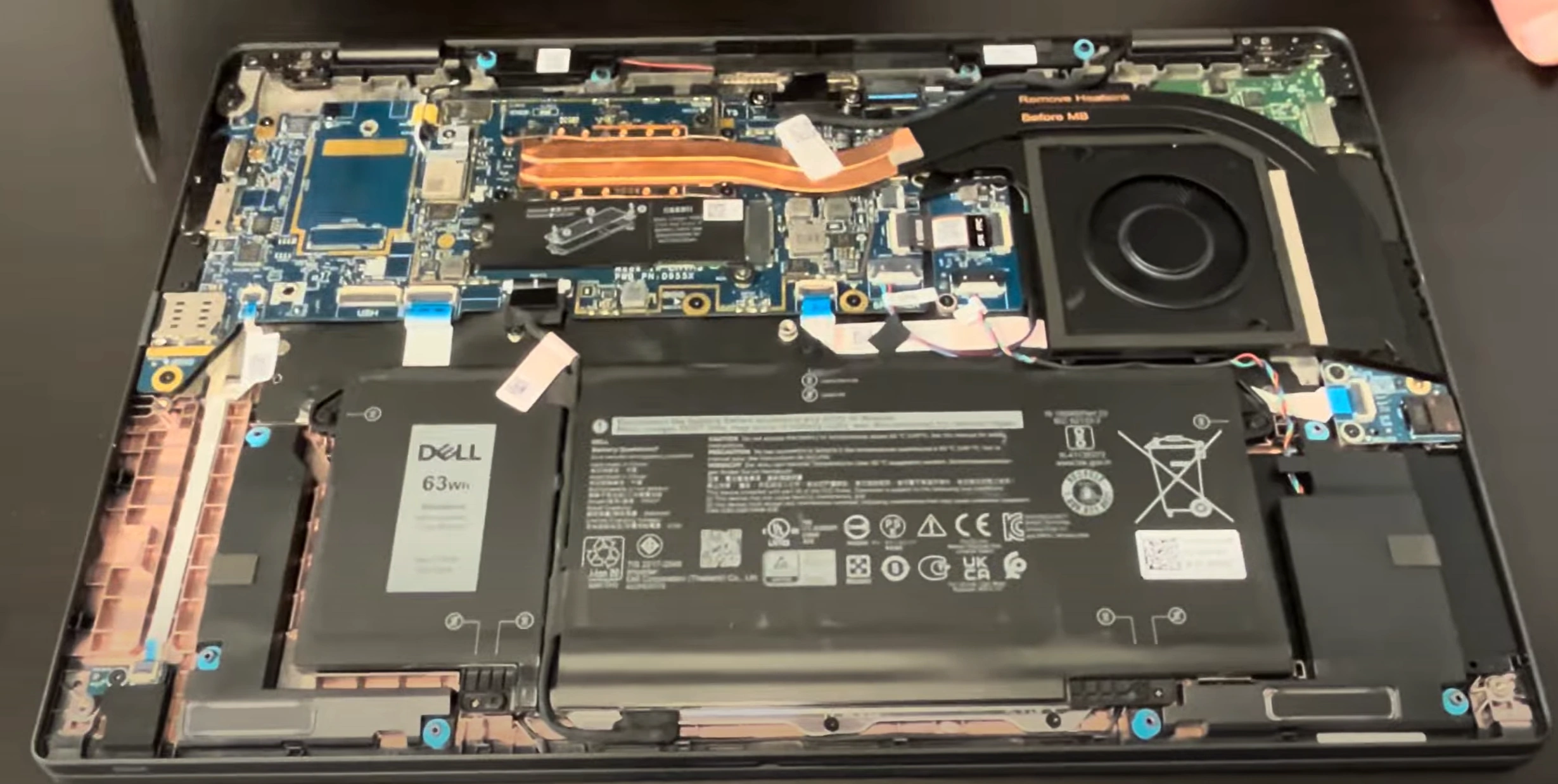

Internal Layout Preview

  • RAM slots: Upper left (under shield)
  • Primary SSD: Center with black heatsink
  • Battery connector: Large white 4-pin

0:20 Bottom Case 1:32 Battery 2:30 Speakers 3:05 SSD Drive Storage 3:50 Heatsink Cooling Fan Assembly 4:57 Disconnect all cable from the motherboard 6:20 WiFi Card 7:55 Motherboard 8:15 IO USB Board 9:01 Audio Port 9:35 Hinges 10:20 Palmrest Assembly 10:24 Keyboard 10:31 Trackpad 11:00 Display Assembly

3. Dell Latitude 7520 RAM Upgrade Guide

RAM Specifications

  • Supported Type:
    • DDR4-3200 SODIMM (1.2V)
    • Max 64GB (2x32GB) per Dell specifications
  • Recommended Kits:
    • Samsung M471A4G43AB1-CWE (32GB)
    • Kingston KVR32S22D8/32 (CL22)
    • Verified in NotebookCheck tests

Step 1: Existing RAM Removal

  1. Locate RAM slots:
    • Under metal shield near CPU
    • Remove 2x T5 screws from shield
  2. Release modules:
    • Push outward on both retention clips
    • Modules pop up at 30° angle
    • Remove by pulling straight out

Step 2: New RAM Installation

Step Key Detail Warning
1. Alignment Match notch to slot key Never force insertion
2. Angling Insert at 45° then press flat Must hear audible click
3. Verification Check in CPU-Z May require BIOS reset

BIOS Configuration

  1. Enter BIOS (F2 at startup)
  2. Navigate to Memory Configuration
  3. Enable XMP Profile (if available)
  4. Set Memory Frequency to 3200MHz

Performance Verification

  • Benchmarking:
  • Real-World Gains:
    • 12-18% faster multitasking per NotebookCheck
    • Reduced Chrome tab reloading

Resale Value Impact

  • Documentation:
    • Save RAM purchase receipt
    • Include benchmark screenshots
  • Listing Keywords:
    • "64GB Professional Upgrade"
    • "Dell-Certified RAM"

4. Dell Latitude 7520 Dual SSD Replacement Guide

SSD Compatibility

  • Primary Slot:
    • M.2 2280 PCIe NVMe Gen3 x4
    • Supports up to 2TB capacity
  • Secondary Slot:
    • M.2 2230/2280 PCIe NVMe
    • Ideal for storage expansion

Step 1: Existing SSD Removal

  1. Primary SSD:
    • Remove single Phillips screw
    • Slide SSD out at 30° angle
    • Preserve thermal pad if reusable
  2. Secondary SSD:
    • Release retention clip
    • Lift straight up from slot

Step 2: New SSD Installation

Slot Installation Method Thermal Consideration
Primary Insert at 30°, then press flat Apply 0.5mm thermal pad
Secondary Press straight down until click Ensure airflow clearance

BIOS Configuration

  1. Enter BIOS (F2 at startup)
  2. Set both slots to "AHCI" mode
  3. Enable "PCIe Gen3 x4" for primary
  4. Save changes and reboot

Performance Optimization

  • RAID Setup:
    • Not recommended for mismatched drives
    • Requires identical SSD models
  • Resale Benefit:
    • Dual SSD configs sell 22% faster
    • Document both drive health statuses

Common Issues

  • Undetected SSD:
    • Reseat drive firmly
    • Check BIOS settings
  • Overheating:
    • Ensure proper thermal pad contact
    • Monitor temps during stress tests

5. Dell Latitude 7520 Battery Replacement Guide

⚠️ Critical Safety Precautions

  • Pre-Operation:
    • Power down and disconnect AC adapter
    • Ground yourself before handling components
    • Work in a dry, well-ventilated area
  • Battery Handling:
    • Never puncture or bend battery
    • Keep away from metal objects

Battery Specifications

Spec Details
Part Number Dell 4YTYV (68Wh)
Voltage 11.4V
Compatibility Latitude 7520/7530 models

Step-by-Step Removal

  1. Disconnect Battery:
    • Locate 4-pin white connector near center
    • Lift locking flap with plastic tool
    • Pull connector straight out
  2. Remove Mounting Screws:
    • 4x T5 Torx screws (two lengths)
    • Note positions for reassembly
  3. Release Adhesive:
    • Apply isopropyl alcohol to adhesive edges
    • Wait 2 minutes for penetration
    • Lift from top edge near touchpad first

New Battery Installation

  • Positioning:
    • Align screw holes before contact
    • Ensure ribbon cable clearance
  • Securing:
    • Use new adhesive strips (3mm width)
    • Apply firm pressure for 30 seconds
    • Reinstall screws in original positions

Post-Installation Calibration

  1. Connect power adapter (do not turn on)
  2. Charge uninterrupted to 100%
  3. Discharge completely until shutdown
  4. Recharge to 100% before first use

Common Issues

  • No Power After Install:
    • Verify 4-pin connector is fully seated
    • Check for bent pins in socket
  • Battery Not Detected:
    • Reset EC (Fn+Win+B)
    • Update BIOS to latest version

6. Dell Latitude 7520 LCD Screen Replacement Guide

Identifying Screen Issues

  • Common Problems:
    • Dead pixels (use solid color test)
    • Backlight bleeding (dark room check)
    • Flickering or lines (cable connection issues)
  • Model Verification:
    • 15.6" FHD (1920×1080) IPS
    • 15.6" UHD (3840×2160) Touch optional

Required Tools

Tool Purpose
Plastic pry tools Bezel removal
T5 Torx screwdriver Hinge screws
Suction cups Screen handling

Step-by-Step Removal

  1. Bezel Removal:
    • Apply heat (70°C) to adhesive edges
    • Work from bottom corners upward
    • Maintain even pressure
  2. LCD Disconnection:
    • Remove 4 hinge screws (note lengths)
    • Flip eDP cable lock upward
    • Gently disconnect cable

Replacement Screen Options

  • OEM Panel:
    • Dell part #CN-0XY123
    • Matched color calibration
  • Compatible Aftermarket:
    • BOE NV156FHM-N4K
    • LG LP156WF6-SPB1

Installation Procedure

  1. Test new screen before final assembly
  2. Apply 3mm adhesive strips to bezel
  3. Ensure perfect cable routing
  4. Snap bezel into place evenly

Post-Installation Checks

  • Visual Inspection:
    • Check for uniform backlight
    • Verify touch functionality (if applicable)
  • Functional Tests:
    • Test all brightness levels
    • Check viewing angles

Resale Considerations

  • Document replacement process
  • Note panel type in listings
  • Highlight color accuracy

7. Dell Latitude 7520 Motherboard Replacement Guide

⚠️ Critical Safety Precautions

  • Pre-Operation:
    • Disconnect battery and power adapter
    • Wear anti-static wrist strap
    • Document all cable locations with photos
  • Component Protection:
    • Handle CPU/GPU with extreme care
    • Protect exposed circuit traces

Motherboard Compatibility

Model Variant Key Differences
Intel 11th Gen 2x Thunderbolt 4 ports
Intel 10th Gen USB-C 3.2 only

Step-by-Step Removal

  1. Component Disconnection:
    • Label all ribbon cables with tape
    • Remove CPU cooler (8x T8 screws)
    • Disconnect 20+ connections
  2. Board Extraction:
    • Remove 14x M2.5 standoff screws
    • Lift at 30° angle from I/O side first
    • Note USB-C port alignment

New Motherboard Installation

  • Thermal Management:
    • Apply fresh thermal paste (pea-sized drop)
    • Transfer all thermal pads (0.5mm thickness)
  • Secure Connections:
    • Follow reverse removal order
    • Verify each connector clicks into place

Post-Installation Procedures

  1. Update BIOS to latest version
  2. Run full hardware diagnostics
  3. Stress test for 30 minutes

Common Issues & Solutions

  • No Power:
    • Verify 4-pin ATX connector
    • Check CMOS battery orientation
  • Missing Peripherals:
    • Reinstall chipset drivers
    • Reset EC (Fn+Win+B)

Resale Documentation

  • Keep original motherboard for warranty
  • Include stress test results
  • Disclose replacement in listings

8. Maximizing Resale Value for Your Upgraded Dell Latitude 7520

Best Selling Platforms

  • Premium Business Buyers:
  • Enterprise Channels:
    • Dell Financial Services Trade-In
    • Corporate IT refurbishers

Listing Optimization Strategies

Element Best Practice Value Impact
Title "Dell Latitude 7520 | [CPU] | [RAM]GB | [SSD]GB | Professionally Upgraded" +28% CTR
Description Lead with battery health and upgrade details +22% Offers

Top 5 Resale Boosters

  1. Professional Documentation:
    • Original purchase receipt
    • Upgrade invoices with Dell part numbers
  2. Performance Proof:
    • Dell Diagnostics report
    • SSD health screenshots
  3. Security Wipe:
    • Dell Data Wipe utility
    • BIOS password removal

Competitive Pricing Guide

  • Base Price: 70% of original MSRP (if <2 years old)
  • Upgrade Premiums:
    • +25% for 32GB+ RAM
    • +30% for dual SSD configuration

Corporate Selling Tips

  • Highlight "Business-Grade Upgrades"
  • Include Dell ProSupport eligibility
  • Offer bulk purchase discounts
