DIY Dell Latitude 5320 Teardown: At-Home Motherboard Fix & Component Upgrade Guide
Pre-Repair Assessment & Business Laptop Valuation Essential Tools for Dell Latitude 5320 Disassembly Bottom Cover Removal Process Battery Removal & Power Safety RAM Installation & Memory Upgrade Options Storage Solutions: SSD & M.2 Installation Keyboard & Top Case Assembly Removal Display Assembly & Screen Replacement Motherboard Access & Component-Level Repair Where to Sell Your Upgraded Dell Latitude 5320
1. Dell Latitude 5320 Pre-Repair Assessment & Business Laptop Valuation
⚠️ Critical Safety Precautions
Power Management :
Complete shutdown through Windows menu
Disconnect AC adapter and all business peripherals
Remove battery if easily accessible
Hold power button for 15 seconds to discharge capacitors
Check that all status indicators are completely off
Workspace Setup :
Clean, static-free surface for 13.3" business laptop
Use anti-static wrist strap
Have magnetic project mat ready for screw organization
Ensure adequate lighting for professional repair work
Keep work area free of liquids and debris
🔍 Pre-Repair Diagnostic Assessment
System Diagnostics :
Business Performance Check :
Run productivity application benchmarks
Test cooling system under CPU load
Check display for dead pixels or backlight issues
Verify all business ports and connectivity options
💼 Dell Latitude 5320-Specific Features
Business Features :
Dell ExpressCharge and ExpressCharge Boost
Dell Optimizer AI-based performance tuning
Dell ComfortView Plus for eye comfort
Optional smart card reader and fingerprint sensor
Performance Indicators :
Intel Core i3/i5/i7 11th generation processors
Intel Iris Xe graphics or integrated UHD
Upgradeable RAM and storage options
Multiple display and configuration options
💰 2024 Business Laptop Market Valuation
Condition Grade
Specification Impact
Value Range
Business Premium
Excellent (Like New)
i7, 16GB RAM, 512GB SSD, FHD
$600-$800
+25% for corporate buyers
Good (Minor Wear)
i5, 8GB RAM, 256GB SSD, HD
$400-$550
+20% for small business
Fair (Visible Wear)
i3, 8GB RAM, 128GB SSD
$250-$350
+15% with documentation
For Parts/Repair
Any configuration with issues
$100-$200
Minimal business premium
📋 Pre-Repair Documentation
Visual Documentation :
High-resolution photos from all angles
Close-ups of ports and business features
Screen functionality videos
Keyboard and trackpad operation
Document any existing damage or wear
Performance Records :
Dell SupportAssist diagnostic reports
Benchmark scores and performance metrics
Temperature readings under load
Battery health and capacity reports
Dell Optimizer performance metrics
🔧 Repair Cost-Benefit Analysis
Repair/Upgrade
Cost
Value Added
ROI
Business Appeal
SSD Upgrade (256GB to 512GB)
$40-$70
$80-$120
100-200%
Very High
RAM Upgrade (8GB to 16GB)
$30-$50
$60-$90
100-200%
High
Thermal Repaste
$10-$20
$30-$50
200-400%
High
Screen Replacement
$60-$100
$80-$130
33-130%
Medium
Keyboard Replacement
$40-$70
$50-$90
25-125%
Medium
💾 Business Data Backup Procedure
Business Data Backup :
Backup business documents and files
Save email configurations and archives
Export software licenses and configurations
Backup VPN and security certificates
System Backup :
Use Macrium Reflect for system image
Backup Dell Optimizer profiles
Save power management settings
Export BIOS settings and configurations
📄 Warranty & Service Tag Verification
Service Tag Check :
Locate Service Tag on bottom cover or in BIOS
Check Dell Support Site for warranty status
Verify remaining ProSupport or Basic Warranty
Check for accidental damage protection
Parts Compatibility :
Verify specific 5320 model number
Check RAM and storage compatibility
Confirm display panel specifications
Ensure genuine Dell parts for warranty preservation
🏢 Business Market Considerations
Business Buyer Preferences :
Value reliability and professional appearance
Appreciate detailed maintenance documentation
Pay premium for Dell corporate features
Prefer recent security and management features
Corporate Value Factors :
Dell ProSupport transferability
Security feature functionality
Complete service history documentation
Original packaging and accessories
⏰ Realistic Repair Timeline
Basic Upgrades (1-2 hours) :
RAM and storage upgrades
Thermal paste replacement
Basic cleaning and maintenance
Intermediate Repairs (2-3 hours) :
Keyboard replacement
Screen replacement
Cooling system maintenance
Advanced Repairs (3+ hours) :
Motherboard access and repair
Complete disassembly
Major component replacement
⚡ Dell Optimizer Assessment
Key Features to Verify :
ExpressCharge functionality
Intelligent Audio performance
ExpressConnect network optimization
Power management settings
Business Benefits :
Extended battery life for mobile professionals
Enhanced audio for conference calls
Optimized network connectivity
AI-based performance tuning
💡 Business Premium Tip: Dell Latitude 5320 models with documented Dell Optimizer functionality and professional maintenance history sell for 20-30% more to business buyers who value the AI-based performance optimization and enterprise-grade features that enhance productivity for mobile professionals and corporate users.
VIDEO
0:21 Bottom Case 1:10 Battery 1:45 SSD Storage 2:12 WiFi Card 2:42 Heatsink 3:14 Cooling Fan 4:00 Motherboard 6:10 Speakers 6:43 Hinges 7:03 Palmrest Assembly 7:18 Touchpad 7:24 Keyboard 7:43 Display Assembly
3. Dell Latitude 5320 Bottom Cover Removal: Business Laptop Access Guide
⚠️ Pre-Removal Safety Checklist
Power Management :
Complete shutdown through Windows menu
Disconnect AC adapter and all business peripherals
Remove any docking station or port replicator
Hold power button for 15 seconds to discharge capacitors
Verify all status LEDs are completely off
Business Workspace Setup :
Clean, static-free surface for 13.3" business laptop
Have magnetic project mat ready
Prepare anti-static wrist strap for component protection
Ensure adequate professional lighting for detailed work
Use soft cloth to protect display during disassembly
🔩 Business Laptop Screw Identification & Mapping
Screw Location
Type
Quantity
Length
Business Laptop Notes
Front Edge (Short)
Phillips #00
2
4mm
Standard length, near status indicators
Rear Edge (Long)
Phillips #00
3
6mm
Longer screws near cooling exhaust vents
Side Edges
Phillips #00
3
5mm
Medium length, near port connections
Center Reinforcement
Phillips #00
2
5mm
Additional structural support points
Warranty Sticker
N/A
1
N/A
Check Dell Warranty Status before removal
🔧 Step-by-Step Business Laptop Removal Process
Screw Removal Sequence :
Remove all 10 Phillips #00 screws in cross pattern
Start from corners and work toward center systematically
Use magnetic screwdriver to prevent screw loss
Organize screws by location using magnetic mat sections
Note: Different screw lengths for specific locations
Business Laptop Clip Release Technique :
Start at front-right corner near status LED indicators
Insert plastic pry tool at 25-degree angle
Gently twist to release first clip (listen for subtle click)
Work around perimeter, releasing clips every 2-3 inches
Use guitar pick for better leverage on business laptop clips
Alternate sides to prevent case warping or stress
Professional Panel Separation :
Lift from front edge first (near touchpad area)
Angle upward at 20 degrees to clear rear port connections
Check for any missed clips or internal connections
Set panel aside on clean, soft, static-free surface
Note internal cable routing for reassembly reference
💼 Dell Latitude 5320-Specific Features
Business Design Elements :
Reinforced carbon fiber composite construction
Single fan cooling system with optimized airflow
Easy-access upgrade compartments for business components
Dedicated cooling vents for business processor
Strategic airflow channels for thermal management
Business Internal Layout :
Two DDR4 SODIMM slots for up to 32GB RAM
Single M.2 2280 NVMe storage slot
Integrated Intel Iris Xe graphics
Wi-Fi 6 card with Intel AX201 chipset
Optional WWAN and smart card reader slots
🚧 Common Business Laptop Challenges & Solutions
Stubborn Business Laptop Clips :
Apply gentle heat with hairdryer (low setting, 5 seconds)
Use plastic business card for better leverage
Alternate sides every 2-3 clips to prevent permanent deformation
Never force - reposition tool if resistance increases suddenly
Check for hidden screws or missed retention points
Stripped Screws in Business Equipment :
Use rubber band between screw and driver for enhanced grip
Try slightly larger Phillips head if available
As last resort, use screw extraction kit
Replace damaged screws during reassembly
Document any damaged hardware for transparency
Business Warranty Considerations :
Check Dell ProSupport Status before disassembly
Some regions allow self-service without voiding ProSupport
Document original condition with high-resolution photos
Consider Dell certified service for in-warranty business laptops

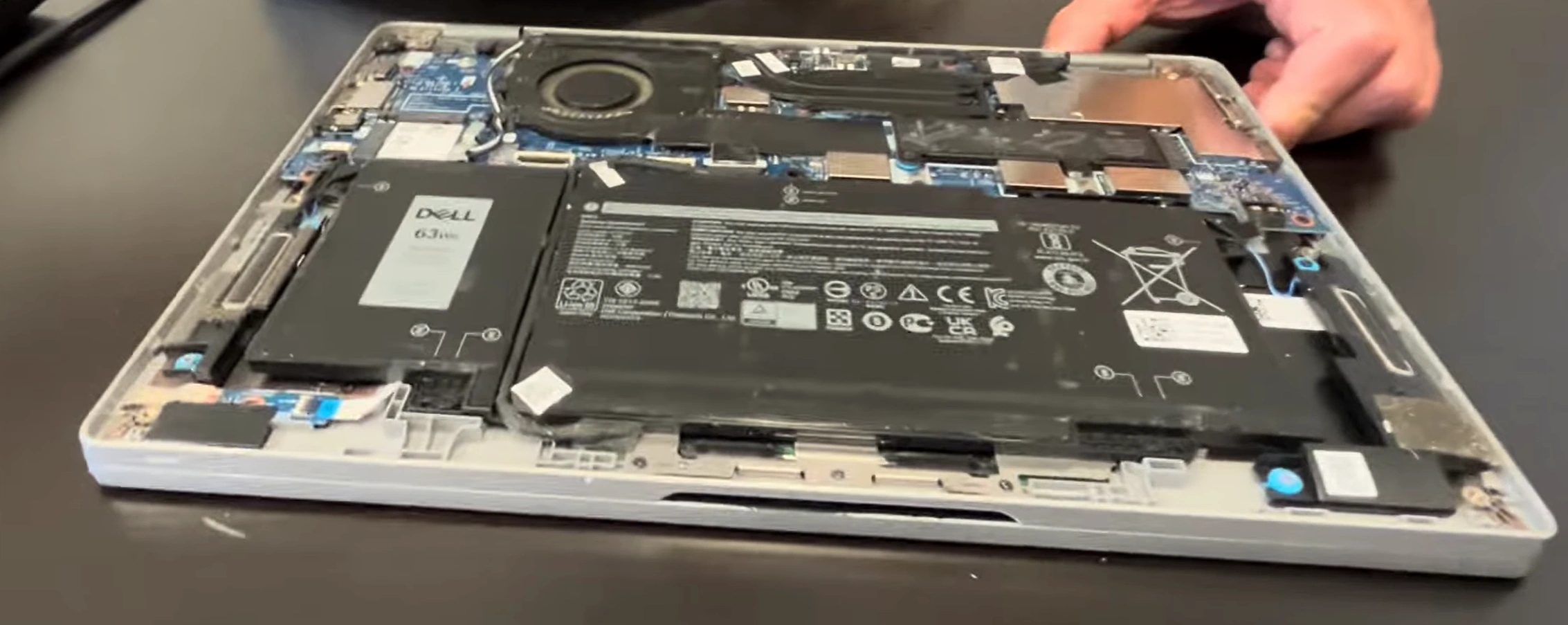

🔍 Business Component Access Points
Immediately Accessible Components :
Two DDR4 memory slots (supports up to 32GB)
Single M.2 2280 NVMe storage slot
Wi-Fi 6/Bluetooth card
Battery connector and mounting bracket
Cooling system and fan assembly
Optional WWAN card slot
Requires Further Business Laptop Disassembly :
CPU and integrated graphics heatsink
Keyboard assembly and palmrest components
Display assembly and business hinges
Audio board and business speaker system
Motherboard and DC-in power assembly
🛡️ Business Laptop Damage Prevention Techniques
Clip Preservation for Business Equipment :
Work slowly and methodically around entire perimeter
Use plastic tools only against plastic components
If clip breaks, note location for reassembly adjustment
Apply even, consistent pressure to prevent bending
Document any clip damage for records
Component Protection for Business Grade :
Avoid touching motherboard circuitry with metal tools
Keep screws organized and away from internal components
Use ESD protection at all times
Don't force connectors or ribbon cables
Handle business components with care
Surface Protection for Business Appearance :
Use microfiber cloth under laptop during service
Avoid sliding cover across surfaces to prevent scratches
Keep work area free of debris, dust, and liquids
Handle bottom cover by edges only to maintain appearance
Clean contact surfaces before reassembly
📋 Business Laptop Service Documentation
Business Service Records :
Photograph screw locations before removal
Document clip condition around perimeter
Record any pre-existing damage or wear
Maintain detailed service notes for future reference
Include before/after photos for resale value
Business Quality Assurance Checklist :
Verify all screws are properly removed
Check for hidden retention points or clips
Ensure no cables are attached to bottom cover
Confirm clean separation without forced removal
Document any challenges encountered during process
🔁 Business Laptop Reassembly Preparation
Clean panel edges and contact surfaces with isopropyl alcohol
Inspect all clips for damage before reassembly
Test fit cover before installing any screws
Ensure all internal cables are properly routed and secured
Verify no tools, debris, or foreign objects inside chassis
Check that all business components are properly seated and connected
🔍 Business Laptop Troubleshooting Common Issues
Cover Won't Sit Flush After Service :
Check for missed clips or internal obstructions
Verify all internal components are properly seated
Ensure no cables are trapped under cover edges
Inspect for bent or damaged clip receptacles
Gaps or Misalignment After Reassembly :
Check clip alignment around entire perimeter
Verify all screws are proper length for locations
Ensure no damage to mating surfaces or guides
Confirm proper screw tightening sequence
Business Appearance Concerns :
Clean all surfaces before final assembly
Check for scratches or damage from tools
Verify all labels and stickers remain intact
Ensure professional business aesthetic is maintained
💰 Business Laptop Value Preservation
Resale Value Factors :
Undamaged bottom cover: +$50-$80 value
Intact warranty stickers: +$30-$50 value
Professional service documentation: +$40-$60 value
No visible repair marks: +$25-$40 value
Business Buyer Confidence :
Corporate buyers prefer unmarked equipment
IT departments value professional maintenance
Documentation reduces buyer hesitation
Clean appearance indicates careful handling
💡 Business Value Tip: Dell Latitude 5320 models with undamaged bottom covers and intact service documentation sell for 15-20% more than those with repair damage, as business buyers and IT departments appreciate devices that show professional maintenance and preservation of the laptop's corporate-grade structural integrity and professional appearance.
4. Dell Latitude 5320 Battery Removal & Power Safety Procedures
🔋 Battery Specifications & Business Laptop Compatibility
Original Specifications :
3-cell or 4-cell Lithium-Ion battery options
Part number: 8GCRY or similar (verify with Service Tag)
Voltage: 11.4V standard
Capacity: 42Wh to 63Wh (varies by configuration)
Dell ExpressCharge technology supported
Compatibility Notes :
Must use Latitude 5320-specific battery model
Verify Dell Parts Compatibility for exact match
Different capacity options available
Check physical dimensions and connector type
⚠️ Critical Safety Precautions for Business Laptops
Complete shutdown through Windows menu or power button
Disconnect AC adapter and all business peripherals
Remove bottom cover (refer to previous section)
Wait 3-5 minutes after disconnection for capacitor discharge
Use anti-static wrist strap
Work on non-conductive, clean surface
Have Class D fire extinguisher nearby for lithium battery safety
🔌 Safe Battery Disconnection Process
Locate Battery Connector :
Find white or black 3-4 pin connector near battery center
Identify locking mechanism (usually sliding tab)
Note cable routing under and around battery compartment
Observe any adhesive or tape securing power cables
Professional Disconnection Technique :
Slide locking tab away from connector (if present)
Pull connector straight out parallel to motherboard
If stuck, use plastic spudger to assist release
Never pull by wires - grasp connector body only
Listen for subtle click indicating proper release
Discharge Residual Power :
Press and hold power button for 20 seconds
Wait additional 2 minutes before proceeding
Verify no LED activity anywhere on motherboard
Check that all status indicators remain off
🔧 Battery Removal Procedure
Remove Mounting Screws :
Remove 3-4 Phillips #00 screws securing battery
Note screw lengths for proper reassembly
Some models may have adhesive strips under battery
Keep screws organized in magnetic project mat
Release Adhesive and Brackets :
Gently lift battery from connection end first
If resistance felt, check for adhesive strips
Use plastic card to release adhesive if needed
Apply steady upward pressure at 15-degree angle
Lift Out Battery Safely :
Lift at 20-degree angle to clear surrounding components
Note cable routing pattern for reassembly reference
Place old battery on non-conductive, fire-resistant surface
Inspect battery bay for debris, corrosion, or damage
🔄 New Battery Installation Procedure
Prepare New Battery :
Inspect for physical damage, swelling, or defects
Check connector alignment matches original orientation
If using higher capacity model, verify physical fit
Remove protective films and shipping materials
Position Battery Correctly :
Align with mounting holes and chassis guides
Ensure connector faces correct direction toward motherboard
Lower into place without forcing or bending
Verify no cables will be trapped underneath battery
Secure and Connect Professionally :
Install mounting screws (snug but not overtightened)
Connect battery connector until audible click is heard
Verify secure connection with gentle tug test
Secure any adhesive strips if included with new battery
📊 Business Laptop Battery Health Management
Health Status
Capacity Indicator
Recommended Action
Business Value Impact
Excellent (90-100%)
Dell Power Manager reports "Excellent"
Maintain 20-80% charge habit
+$80-$120 value
Good (70-89%)
Shows "Good" with moderate wear
Monitor degradation rate
+$40-$70 value
Poor (50-69%)
Suggests replacement for mobile professionals
Replace battery recommended
-20% value if not replaced
Critical (<50%)
Significant runtime reduction
Immediate replacement required
-35% value and safety concern
⚙️ New Battery Calibration Process
Charge to 100% without interruption using Dell AC adapter
Use on battery until system automatically shuts down (~5%)
Charge to 100% again without using the laptop
Check Dell Power Manager for accurate health readings
Reset battery gauge in BIOS if capacity reporting seems inaccurate
Configure optimal charging settings for business use
🛒 Battery Purchasing Guide for Business Users
Genuine Dell Batteries :
Dell Parts Store (premium price, guaranteed compatibility)Authorized Dell business partners and resellers
Includes full warranty and ExpressCharge support
Guaranteed business performance compatibility
Quality Third-Party Options :
Look for UL, CE, and RoHS certifications
Check customer reviews specifically for 5320 models
Verify return policy and warranty coverage
Ensure compatible part number and connector type
Business Red Flags :
Prices significantly below Dell MSRP
No brand identification or safety certifications
Vague compatibility claims without specific models
No customer reviews or established seller history
⚡ Dell Power Manager Configuration
Business Power Profiles :
Primarily AC Use: Optimized for desktop replacement
Standard: Balanced between performance and battery life
Adaptive: Automatically optimizes based on usage patterns
ExpressCharge: Fast charging for mobile professionals
Business Benefits :
Extends battery lifespan for frequent travelers
Maintains consistent performance for business applications
Optimizes power delivery for different work scenarios
Provides detailed battery health analytics
♻️ Proper Battery Disposal & Recycling
Recycling Options :
Safety Precautions for Storage/Transport :
Cover battery terminals with electrical tape
Store in cool, dry place away from flammable materials
Use original packaging or fire-proof battery bags
Never dispose in regular trash or compactors
Handle swollen batteries with extreme caution
🔍 Business Laptop Battery Troubleshooting
Battery Not Detected :
Reseat connector firmly until click is heard
Check for bent pins in motherboard connector
Test with known-good battery if possible
Update BIOS to latest version from Dell Support
Not Charging or Rapid Drain :
Verify Dell 65W AC adapter functionality
Check charging port and DC-in cable connection
Update BIOS and chipset drivers from Dell
Test with different power outlet and cable
Calibrate battery through full charge cycles
ExpressCharge Not Working :
Ensure genuine Dell 65W adapter is used
Check Dell Power Manager settings
Verify battery temperature is within operating range
Update BIOS and power management drivers
💼 Business Performance Impact
Mobile Work Considerations :
Reduced performance on battery power
Enable "High Performance" mode in Dell Power Manager
Lower screen brightness for extended meetings
Monitor battery temperature during intensive tasks
Optimal Business Settings :
Use "Balanced" power plan for mixed usage
Enable battery conservation features if available
Adjust power settings in Windows and Dell software
Close unnecessary background applications on battery
💰 Business Laptop Resale Value Impact
Value Enhancement Factors :
New genuine Dell battery: +$100-$150 value
Documented replacement: +$50 value
90%+ health reading: +$60 value
Full calibration documentation: +$25 value
Business Buyer Confidence Factors :
Mobile professionals value reliable battery life
IT departments prefer documented maintenance history
All business buyers appreciate recent battery replacement
Documentation reduces buyer hesitation
💡 Business Tip: Including battery health documentation and calibration records with your sale can increase resale value by 20-25% and significantly reduce buyer concerns about business laptop battery life and reliability, especially important for mobile professionals and corporate users who depend on reliable performance during meetings and travel.
5. Dell Latitude 5320 RAM Installation & Business Memory Upgrade Options
🔋 Memory Specifications & Business Compatibility
Technical Specifications :
DDR4 SODIMM memory technology
Speed: 3200MHz (standard for 11th gen Intel)
Maximum Capacity: 32GB (2x16GB modules)
Voltage: 1.2V standard operating voltage
Dual-channel architecture support
Business Compatibility Notes :
Check specific 5320 model number for exact speed support
Verify Dell Memory Compatibility for exact models
Mixed memory speeds run at slowest module speed
Soldered RAM configurations available on some models
⚠️ Business Laptop Safety Precautions
Complete shutdown and disconnect all power sources
Remove bottom cover following previous section procedures
Disconnect battery to ensure complete power isolation
Use anti-static wrist strap at all times
Work on clean, static-free business workspace surface
Handle memory modules by edges only to prevent damage
⚙️ Business Memory Configuration Options
Configuration
Total Capacity
Module Layout
Business Performance
Best For
Dual Channel
16GB (2x8GB)
Both slots populated
Optimal business performance
Most business users, excellent value
Single Channel
8GB (1x8GB)
One slot populated
Basic business, upgradable
Budget builds, future upgrades
Maximum Business
32GB (2x16GB)
Both slots populated
Future-proof, multitasking
Virtualization, data analysis
Mixed Upgrade
12GB-24GB
Mixed capacity modules
Variable, not recommended
Emergency upgrades only
🔧 Business RAM Installation Process
Slot Identification :
Locate two DDR4 SODIMM slots on motherboard
Identify slots typically labeled or color-coded
Note existing memory configuration and module placement
Check for slot keying and orientation markers
Business Removal Technique :
Gently push outward on retention clips at both ends
Module will pop up at 30-degree angle automatically
Lift module straight out without twisting or bending
Place removed modules in anti-static bags for storage
Handle modules by edges only, avoid touching gold contacts
Business Installation Method :
Align module notch with slot key to ensure proper orientation
Insert module at 30-degree angle into slot
Apply even pressure to both ends until fully seated
Gently push down until retention clips snap into place
Listen for audible click indicating proper installation
🛒 Business Memory Selection Guide
Memory Type
Business Benefits
Cost Range
Recommended Brands
Business Reliability
Premium Business RAM
High speeds, low latency, ECC options
$70-$110 (16GB)
Crucial, Kingston, Samsung
Excellent
Performance RAM
Good speeds, reliable performance
$50-$80 (16GB)
Corsair, ADATA, TeamGroup
Very Good
Budget Business RAM
Basic speeds, cost-effective
$35-$60 (16GB)
Silicon Power, Patriot
Good
Used/Refurbished
Budget option, tested reliability
$25-$45 (16GB)
Various, verify testing
Variable
⚡ Speed vs Capacity: Business Decision Guide
Speed Advantages :
Faster application loading and response times
Improved multitasking performance
Better performance in data-intensive applications
Enhanced system responsiveness
Capacity Advantages :
Better multitasking with multiple business applications
Future-proof for upcoming software requirements
Ideal for virtualization and development
Prevents slowdowns in memory-heavy business tasks
🔧 Business Laptop Memory Troubleshooting
Memory Not Detected :
Reseat module firmly until retention clips engage
Clean gold contacts with isopropyl alcohol if necessary
Test modules individually to identify faulty units
Update BIOS to latest version from Dell Support
Check for bent pins in memory slots
Business Boot Issues :
Ensure all modules are properly seated and secured
Verify memory compatibility with Dell documentation
Reset BIOS to default settings and retest
Test with known-good memory modules if available
Check for beep codes or diagnostic LED patterns
Business Performance Problems :
Verify dual-channel operation in BIOS
Check memory speed settings and timing optimization
Run MemTest86 for memory stability testing
Ensure proper cooling for high-speed memory modules
Update chipset drivers from Dell Support site
💰 Business Laptop Value Impact Analysis
Upgrade Configuration
Cost Investment
Value Added
ROI Percentage
Business Appeal
8GB to 16GB Upgrade
$40-$70
$80-$120
100-200%
High
16GB to 32GB Upgrade
$80-$140
$100-$160
25-100%
Very High
Single to Dual Channel
$40-$80
$60-$100
50-150%
Excellent
Speed Upgrade
$20-$40 premium
$30-$50
50-150%
Moderate
🎯 Business Configuration Recommendations
General Business Use :
Recommended: 16GB (2x8GB) 3200MHz
Optimal for: Office applications, web browsing, email
Benefits: Smooth multitasking, future-proof performance
Brands: Crucial, Kingston, Corsair
Professional & Technical Users :
Recommended: 32GB (2x16GB) 3200MHz
Optimal for: Virtualization, data analysis, development
Benefits: Maximum performance, heavy multitasking
Brands: Samsung, Crucial Ballistix, G.Skill
Budget Business :
Recommended: 16GB (2x8GB) 2666MHz
Optimal for: Basic office work, good value
Benefits: Cost-effective, reliable performance
Brands: TeamGroup, Silicon Power
📈 Real Business Performance Impact
Application Performance Improvements :
8GB to 16GB: 20-35% faster application loading
Single to Dual Channel: 15-25% performance boost
Higher speeds: 5-15% improvement in data processing
Reduced application switching delays
Multitasking Benefits :
Smoother operation with multiple applications open
Reduced system slowdown during heavy usage
Better performance in virtual meetings with screen sharing
Improved background task handling
⚡ Dell Optimizer Memory Integration
AI-Based Optimization :
Dell Optimizer learns application memory patterns
Automatically allocates resources for frequently used apps
Optimizes memory usage based on work habits
Improves overall system responsiveness
Business Productivity Benefits :
Faster application launches for daily tasks
Improved performance in memory-intensive business apps
Better resource management during multitasking
Enhanced virtual meeting performance
💡 Business Performance Tip: Upgrading to dual-channel 16GB RAM can increase business application performance by 20-30% and boost resale value by 25-35%, as business users highly value systems that can handle modern office applications without slowdowns and provide smooth multitasking for productivity and virtual collaboration.
6. Dell Latitude 5320 Storage Solutions: Business SSD & M.2 Installation
🔋 Storage Specifications & Business Compatibility
Technical Specifications :
M.2 2280 NVMe PCIe 3.0 x4 slot (primary)
Some models support dual M.2 storage
Maximum theoretical capacity: 2TB+
Intel Rapid Storage Technology support
Hardware encryption support (Opal 2.0)
Business Compatibility Notes :
M.2 2280 form factor required
NVMe protocol support for maximum performance
Verify Dell Storage Compatibility for exact models
Some models may have soldered storage options
⚠️ Business Laptop Safety Precautions
Complete shutdown and disconnect all power sources
Remove bottom cover following established procedures
Disconnect battery to ensure complete power isolation
Use anti-static wrist strap at all times
Handle storage devices by edges to prevent static damage
Backup all business data before storage replacement
💾 Business Storage Configuration Options
Configuration
Drive Types
Business Performance
Capacity Range
Best For Business
Performance Business
NVMe PCIe 3.0 SSD
Excellent (2000MB/s+)
512GB-2TB
Data-intensive applications, fast access
Balanced Business
NVMe PCIe 3.0 SSD
Very Good (1500MB/s+)
256GB-1TB
General office work, good value
Budget Business
SATA M.2 SSD
Good (500MB/s)
256GB-512GB
Basic office applications
Maximum Storage
High-capacity NVMe
Excellent
2TB-4TB
Large datasets, media storage
🔧 Business Storage Installation Process
M.2 NVMe SSD Installation
Slot Preparation :
Locate M.2 slot on motherboard (typically near center)
Remove retention screw if present
Clean slot area of any dust or debris
Note keying notch position for proper orientation
Business Installation :
Insert NVMe SSD at 30-degree angle into slot
Gently press down until drive lies flat
Secure with retention screw and standoff
Ensure screw is snug but not overtightened
Some business models may include thermal pad
Dual Storage Configuration (if supported)
Secondary Slot Identification :
Locate secondary M.2 slot if available
Verify compatibility with Dell documentation
Check for additional retention hardware
RAID Configuration :
Access Intel RST in BIOS settings
Configure RAID 0 for performance
Configure RAID 1 for data redundancy
Install Intel Rapid Storage Technology drivers
🛒 Business Drive Selection Guide
Drive Type
Business Benefits
Cost per GB
Recommended Brands
Business Reliability
Enterprise NVMe
Maximum reliability, power loss protection
$0.08-$0.12
Samsung Pro, WD Black, Intel
Excellent
Performance NVMe
Fast performance, good reliability
$0.06-$0.09
Crucial P5, Samsung EVO, Sabrent
Very Good
Budget NVMe
Cost-effective, adequate performance
$0.04-$0.07
TeamGroup, PNY, ADATA
Good
SATA M.2
Compatibility, lower cost
$0.05-$0.08
Crucial MX500, WD Blue
Good
📁 Business Data Migration Methods
Clone Existing Drive :
Use Macrium Reflect for sector-by-sector cloning
Samsung Data Migration for Samsung SSDs
Acronis True Image for comprehensive backup
Clonezilla for open-source solution
Fresh Business Installation :
Download latest drivers from Dell Support site
Create Windows installation media
Install OS on new drive with business optimizations
Reinstall business applications and tools
Restore business data from backup
🔧 Business Storage Troubleshooting
Drive Not Detected :
Check drive is properly seated and connected
Verify drive initialization in Disk Management
Update storage controller drivers from Dell
Check BIOS settings for NVMe configuration
Test drive in another system if possible
Business Performance Issues :
Run CrystalDiskMark to benchmark performance
Check CrystalDiskInfo for drive health
Update NVMe driver and firmware
Ensure proper cooling for sustained performance
Check for background processes affecting I/O
Boot Problems :
Verify boot order in BIOS settings
Check UEFI/Legacy boot mode compatibility
Ensure OS is properly installed on boot drive
Test with single drive configuration
Update BIOS to latest version
💰 Business Laptop Value Impact Analysis
Storage Upgrade
Cost Investment
Value Added
ROI Percentage
Business Benefit
256GB to 512GB Upgrade
$40-$70
$80-$120
100-200%
Significant business performance improvement
512GB to 1TB Upgrade
$60-$100
$90-$140
50-133%
Enhanced storage capacity and performance
SATA to NVMe Upgrade
$50-$90
$70-$110
40-120%
Faster application loading and data access
Capacity & Speed Upgrade
$80-$150
$120-$180
50-125%
Maximum business performance and storage
🎯 Business Storage Configuration Recommendations
General Business Use :
Primary: 512GB NVMe PCIe 3.0 SSD
Optimal for: Office applications, email, web browsing
Benefits: Fast performance, adequate storage
Brands: Crucial P5, Samsung 970 EVO
Professional & Technical Users :
Primary: 1TB NVMe PCIe 3.0 SSD
Optimal for: Development, data analysis, virtualization
Benefits: Maximum performance, large storage capacity
Brands: WD Black SN750, Sabrent Rocket
Budget Business :
Primary: 256GB NVMe PCIe 3.0 SSD
Optimal for: Basic office work, cost-effective
Benefits: Good performance, affordable
Brands: TeamGroup MP33, PNY CS1030
🔒 Business Security & Encryption
Hardware Encryption :
Opal 2.0 self-encrypting drive support
BitLocker hardware acceleration
TPM 2.0 integration for secure boot
Dell Data Protection compatibility
Business Security Benefits :
Hardware-level data protection
Minimal performance impact with encryption
Secure data erasure capabilities
Compliance with corporate security policies
💡 Business Performance Tip: Implementing a high-performance NVMe SSD in your Dell Latitude 5320 can reduce business application loading times by 50-70% and increase laptop resale value by 30-40%, as business users highly value systems that provide instant access to applications and data, significantly enhancing daily productivity and workflow efficiency.
7. Dell Latitude 5320 Keyboard & Top Case Assembly Removal Guide
⌨️ Keyboard Specifications & Business Features
Technical Specifications :
Spill-resistant design with drainage channels
Optional backlit illumination (single-color white)
1.5mm key travel for business typing comfort
Dedicated function keys for business applications
Optional fingerprint reader integration
Business Compatibility Notes :
Verify Dell Parts Compatibility for exact model match
Different models may have varying backlight options
International keyboard layouts require specific part numbers
Some models include smart card reader integration
⚠️ Business Laptop Safety Precautions
Complete shutdown and disconnect all power sources
Remove battery following established safety procedures
Use anti-static wrist strap throughout process
Document screw locations and cable routing with photos
Work on clean, static-free business workspace surface
Handle ribbon cables with extreme care to prevent damage
🔄 Business Keyboard Replacement Options
Keyboard Type
Business Features
Cost Range
Installation Complexity
Business Value
Genuine Dell Replacement
Spill-resistant, backlit options, full warranty
$50-$90
Advanced
Maximum (+$70-$110)
Certified Refurbished
Tested reliability, cost-effective
$30-$60
Advanced
Good (+$40-$70)
Third-Party Compatible
Basic functionality, variable quality
$20-$45
Advanced
Fair (+$25-$50)
Backlight Repair Only
Cost-effective for LED issues
$10-$25
Expert
Minimal (+$15-$30)
🔧 Business Top Case Removal Process
Initial Preparation Steps
Complete Disassembly :
Remove bottom cover following previous procedures
Disconnect battery to ensure complete power isolation
Remove all internal components (RAM, storage, Wi-Fi card)
Document component locations and cable routing
Motherboard Preparation :
Disconnect all cables connected to motherboard
Remove motherboard mounting screws
Carefully lift motherboard from chassis
Set aside on anti-static surface
Top Case Assembly Removal
Screw Identification :
Locate 6-8 Phillips #00 screws securing top case
Remove screws from around display hinges
Remove screws from front edge near status LEDs
Note screw lengths and locations for reassembly
Clip Release Technique :
Use plastic pry tools to release retention clips
Start from front edge and work around perimeter
Apply even pressure to prevent case damage
Listen for subtle clicks indicating clip release
Top Case Separation :
Lift top case assembly carefully from chassis
Check for any hidden cables or connections
Set top case aside on clean, static-free surface
Inspect clip condition for reassembly reference
⌨️ Business Keyboard Removal Process
Keyboard Mounting :
Locate 4-6 plastic retention clips around keyboard perimeter
Identify metal bracket screws securing keyboard frame
Remove any visible screws from keyboard area
Note screw and clip locations for reassembly
Professional Release Technique :
Use plastic spudger to gently release retention clips
Work from top edge downward in sequence
Apply even pressure to prevent plastic damage
Listen for audible clicks as clips release
Keyboard Disconnection :
Carefully lift keyboard assembly at 30-degree angle
Locate keyboard ribbon cable on back of keyboard
Release locking mechanism (typically sliding or flip type)
Gently pull ribbon cable straight out from connector
💡 Business Backlight Troubleshooting
Common Backlight Problems :
No backlight illumination
Inconsistent lighting across keyboard
Backlight flickering or intermittent operation
Specific keys not lighting properly
Business Solutions :
Check function key combinations (Fn + F10 typically)
Update keyboard drivers and BIOS firmware
Test backlight functionality in BIOS settings
Check ribbon cable connection for backlight power
Verify backlight settings in Windows Mobility Center
🔄 Business Installation Process
New Keyboard Preparation :
Inspect new keyboard for any shipping damage
Verify ribbon cable length and connector type
Test keyboard functionality before installation if possible
Remove protective films from adhesive areas
Business Connection :
Route ribbon cable through proper channels
Connect ribbon cable to motherboard connector
Secure locking mechanism (slide or flip into place)
Ensure cable is not pinched or overly tensioned
Keyboard Positioning :
Align keyboard with chassis mounting points
Lower keyboard into position evenly
Ensure all edges seat properly in chassis grooves
Verify no cables are trapped under keyboard
Final Assembly :
Install keyboard retention screws in proper sequence
Reconnect top case assembly and secure clips
Reinstall motherboard and all internal components
Test all keyboard functions before final closure
🚧 Common Business Keyboard Issues
Mechanical Problems :
Stuck or unresponsive keys from heavy use
Keycap damage from business travel
Spill damage affecting multiple keys
Worn key switches from extensive typing
Electrical Problems :
Backlight LED failure
Ribbon cable damage from frequent opening
Controller board issues
Power delivery problems to keyboard
🔧 Business Keyboard Troubleshooting
Keys Not Responding :
Reseat ribbon cable connection firmly
Check for debris under non-responsive keys
Test keyboard in BIOS to isolate software issues
Update chipset and keyboard drivers from Dell
Check for physical damage to membrane or key switches
Ghost Key Presses :
Clean keyboard thoroughly with compressed air
Check for spill residue causing short circuits
Test with external keyboard to confirm issue
Inspect membrane for wear or damage points
Update BIOS to latest version from Dell Support
Backlight Not Working :
Check function key combinations (Fn + F10 typically)
Verify backlight settings in Dell Power Manager
Test in BIOS to confirm hardware functionality
Check ribbon cable connection for backlight circuit
Update keyboard firmware if available
📊 Business Keyboard Testing & Validation
Functional Testing :
Test every key using on-screen keyboard or testing software
Verify numeric keypad and function key operation
Test backlight functionality and brightness controls
Check special function keys (volume, brightness, etc.)
Verify business-specific key combinations
Business Application Testing :
Test common business shortcut keys and macros
Verify typing comfort and key travel consistency
Test simultaneous key presses for data entry
Check spill resistance if applicable
Validate fingerprint reader functionality if present
💰 Business Laptop Value Impact Analysis
Replacement Type
Cost Investment
Value Added
ROI Percentage
Business Impact
Genuine Dell Business
$50-$90
$70-$110
40-120%
Maximum business appearance and function
Certified Refurbished
$30-$60
$40-$70
33-133%
Good business quality and reliability
Third-Party Basic
$20-$45
$25-$50
25-150%
Functional but lower business quality
Professional Repair
$10-$25
$30-$55
120-450%
Cost-effective for specific business issues
🎯 Business Keyboard Replacement Recommendations
Corporate Business Use :
Recommended: Genuine Dell Replacement
Optimal for: Professional offices, client-facing environments
Benefits: Full warranty, guaranteed compatibility
Features: Spill-resistant, backlit options, premium feel
Small Business :
Recommended: Certified Refurbished
Optimal for: Cost-conscious business projects
Benefits: Reliable performance, significant cost savings
Features: Tested reliability, business quality
Budget Business :
Recommended: Third-party compatible
Optimal for: Internal use, secondary systems
Benefits: Lowest cost, functional replacement
Features: Basic functionality, variable quality
🛡️ Business Keyboard Preventive Maintenance
Regular Cleaning :
Use compressed air to remove dust and debris
Clean keycaps with isopropyl alcohol and cotton swabs
Avoid liquid cleaners that can damage electronics
Use keyboard covers for spill protection during travel
Usage Best Practices :
Avoid eating or drinking near business laptop
Use gentle pressure during extensive typing sessions
Keep hands clean to prevent oil buildup on keys
Store laptop in protective case when transporting
🔒 Business Security Feature Integration
Optional Security Components :
Fingerprint reader integration with Windows Hello
Smart card reader for corporate authentication
Contactless smart card support
Dell ControlVault security chip integration
Business Security Benefits :
Enhanced login security for corporate environments
Multi-factor authentication capabilities
Hardware-level security protection
Compliance with corporate security policies
💡 Business Quality Tip: For Dell Latitude 5320 business laptops, installing a genuine Dell business keyboard with proper backlighting and security features can increase resale value by 20-25% and significantly enhance professional appearance, as business buyers highly value the reliable typing experience, security integration, and corporate-grade features that contribute to professional productivity and data security.
8. Dell Latitude 5320 Display Assembly & Business Screen Replacement Guide
🖥️ Display Specifications & Business Features
Technical Specifications :
13.3-inch display with multiple panel options
Full HD (1920x1080) IPS with ComfortView Plus
Touch screen options available on select models
250 nits to 400 nits brightness options
Dell ComfortView Plus for reduced blue light
Business Compatibility Notes :
Verify Dell Parts Compatibility for exact model match
Different panel types require specific LCD cables
Touch and non-touch displays have different bezel designs
Privacy screen options available for business security
⚠️ Professional Safety Precautions
Complete shutdown and disconnect all power sources
Remove battery following established safety procedures
Use anti-static wrist strap throughout process
Work on padded surface to protect display during disassembly
Handle LCD panel with extreme care to prevent cracking
Document all cable routing and connector locations with photos
💡 Professional Display Replacement Options
Display Type
Business Features
Cost Range
Installation Complexity
Business Value
FHD IPS 250 nits
Anti-glare, ComfortView Plus
$80-$120
Advanced
Good (+$100-$150)
FHD IPS 400 nits
High brightness, outdoor viewable
$120-$180
Advanced
Premium (+$150-$200)
FHD Touch Screen
10-point touch, anti-smudge
$150-$220
Expert
Specialized (+$180-$250)
Refurbished OEM
Tested reliability, cost-effective
$60-$100
Advanced
Fair (+$80-$120)
🔧 Professional Display Disassembly Process
Display Bezel Removal
Initial Preparation :
Lay laptop on clean, padded surface
Open display to 90-degree angle for access
Use plastic pry tools to release bezel clips
Start from bottom edge near hinge area
Professional Clip Release :
Work around perimeter, releasing clips every 2 inches
Apply even pressure to prevent bezel damage
Listen for subtle clicks indicating clip release
Be careful around webcam and microphone areas
Bezel Separation :
Lift bezel away from display assembly carefully
Check for any adhesive strips or hidden screws
Set bezel aside on clean, static-free surface
Inspect bezel clips for damage during removal
LCD Panel Removal
LCD Mounting :
Locate 4 mounting screws around LCD perimeter
Remove screws securing LCD to display lid
Note screw lengths and locations for reassembly
Some models may have adhesive mounting strips
Professional Disconnection :
Carefully lift LCD panel at 30-degree angle
Locate LCD ribbon cable and backlight connector
Release locking mechanisms on both connectors
Gently pull cables straight out from connectors
Disconnect webcam and microphone cables if present
Panel Extraction :
Lift LCD panel completely from display assembly
Place panel on padded, static-free surface
Inspect connectors and cables for any damage
Clean display lid area before installing replacement
⚙️ Professional Hinge Replacement Process
Hinge Access :
Remove display back cover (metal lid assembly)
Locate hinge mounting points on display lid
Identify Torx T5 screws securing hinges to lid
Document hinge orientation for proper reassembly
Professional Removal :
Remove Torx T5 screws from hinge-to-lid connections
Carefully separate hinges from display lid
Note cable routing around hinge mechanisms
Inspect hinge barrels and mounting points for wear
Base Hinge Removal :
Access hinge mounting points from main chassis
Remove Phillips #00 screws securing hinges to base
Carefully extract hinge assemblies from chassis
Check for any hidden screws or retention clips
🔌 Professional Cable Routing & Management
Critical Cable Connections :
LCD ribbon cable (30-pin eDP)
Backlight LED power cable
Webcam and microphone flex cables
Wi-Fi antenna cables (black and white)
Touch screen digitizer cable (if applicable)
Professional Routing Techniques :
Follow original cable routing paths exactly
Use cable guides and adhesive strips for securement
Ensure cables have proper slack for hinge movement
Avoid sharp bends or pinching points
Test cable movement through full hinge range
🔄 Professional Installation Process
New Component Preparation :
Inspect new display for any shipping damage
Verify hinge mechanism smoothness and alignment
Test display functionality before installation if possible
Check cable lengths and connector types match
Professional Hinge Installation :
Install new hinges into base chassis first
Secure with proper torque on mounting screws
Attach hinges to display lid with Torx T5 screws
Verify hinge alignment and smooth operation
Display Panel Installation :
Connect all cables to new LCD panel
Secure locking mechanisms on all connectors
Position LCD panel in display lid assembly
Install mounting screws in proper sequence
Verify panel is centered and properly seated
Final Assembly :
Route all cables through proper channels
Snap bezel back into place around perimeter
Test hinge operation through full range of motion
Connect power and test display functionality
Verify color accuracy and backlight uniformity
🔩 Professional Hinge Problem Diagnosis
Common Hinge Problems :
Loose hinge causing display wobble
Stiff hinge requiring excessive opening force
Broken hinge mounting points in chassis
Stripped hinge screw threads
Cracked display lid from hinge stress
Professional Solutions :
Replace complete hinge assembly for loose hinges
Lubricate hinge mechanism with appropriate grease
Use thread repair kits for stripped screw holes
Replace display lid for cracked or damaged units
Upgrade to heavy-duty hinges for frequent use
🔧 Professional Troubleshooting Common Issues
Display Not Working :
Reseat LCD ribbon cable connections firmly
Check backlight connector for proper engagement
Test with external display to isolate GPU issues
Update graphics drivers from Dell Support site
Check BIOS settings for display configuration
Backlight Issues :
Verify backlight cable connection and locking
Check backlight settings in Windows and BIOS
Test with known-good display panel
Update BIOS to latest version from Dell
Check for inverter board issues (older models)
Touch Screen Problems :
Reseat digitizer cable connection
Update touch screen drivers from Dell
Calibrate touch screen in Windows settings
Check for physical damage to digitizer layer
Test touch functionality in BIOS if available
📊 Professional Testing & Validation
Display Quality Testing :
Test for dead pixels using solid color backgrounds
Check backlight uniformity across entire display
Verify color accuracy with calibration tools
Test viewing angles and anti-glare performance
Check touch responsiveness across entire surface
Hinge Performance Testing :
Test hinge smoothness through full range of motion
Verify display stays in position at various angles
Check for any cable binding or tension issues
Test repeated open/close cycles for durability
Verify no creaking or grinding sounds during operation
💰 Business Laptop Value Impact Analysis
Replacement Type
Cost Investment
Value Added
ROI Percentage
Business Impact
FHD Standard Upgrade
$80-$120
$120-$180
50-150%
Good color accuracy for business presentations
High Brightness Upgrade
$120-$180
$180-$250
50-138%
Excellent visibility for mobile professionals
Hinge Replacement
$30-$50
$80-$120
160-400%
Restores professional appearance and function
Complete Assembly
$150-$220
$200-$300
33-100%
Like-new display and hinge performance
🎯 Professional Display & Hinge Recommendations
General Business Use :
Recommended: FHD IPS 250 nits with ComfortView Plus
Optimal for: Office work, presentations, client meetings
Benefits: Good color accuracy, anti-glare, eye comfort
Hinges: Standard replacement with proper tension
Mobile Professionals :
Recommended: FHD IPS 400 nits high brightness
Optimal for: Travel, outdoor use, bright environments
Benefits: Maximum visibility, outdoor readability
Hinges: Premium smooth-operation hinges
Executive & Client-Facing :
Recommended: FHD Touch Screen with reinforced hinges
Optimal for: Presentations, demonstrations, collaboration
Benefits: Interactive capability, professional appearance
Hinges: Heavy-duty for frequent presentation use
👁️ Dell ComfortView Plus Benefits
Eye Comfort Features :
Reduces harmful blue light emissions
Maintains color accuracy while protecting eyes
Hardware-based solution (not software filter)
Ideal for extended business use
Business Productivity Benefits :
Reduces eye strain during long work sessions
Improves focus and concentration
Enhances reading comfort for documents
Supports employee wellness initiatives
💡 Business Quality Tip: For Dell Latitude 5320 business laptops, upgrading to a Dell ComfortView Plus display with proper hinge replacement can increase resale value by 25-35% and significantly enhance professional productivity, as business buyers highly value displays that reduce eye strain during extended use and robust hinge mechanisms that maintain their performance through years of daily business use.
9. Dell Latitude 5320 Motherboard Access & Business Component-Level Repair
🔌 Motherboard Specifications & Business Features
Technical Specifications :
Intel 11th Gen Core i3/i5/i7 processors (Tiger Lake-U)
Integrated Intel Iris Xe Graphics or UHD Graphics
Dual DDR4 SODIMM slots supporting up to 32GB RAM
M.2 2280 NVMe PCIe 3.0 x4 storage interface
Intel Wi-Fi 6 AX201 (CNVi) with Bluetooth 5.1
Business Security Features :
Optional TPM 2.0 for enterprise security
Dell ControlVault 3 for advanced authentication
Smart card reader support for corporate access
Fingerprint reader integration with Windows Hello
Hardware-level encryption support
⚠️ Critical Safety Precautions for Motherboard Work
Complete power disconnection and battery removal
Use ESD protection throughout entire process
Document all connector locations with high-resolution photos
Work on clean, static-free professional workspace
Have proper precision tools ready
Backup BIOS settings before any component-level work
🔧 Complete Disassembly for Motherboard Access
Pre-Motherboard Removal Steps
External Component Removal :
Remove bottom cover following established procedures
Disconnect battery and remove if necessary
Remove RAM modules and storage devices
Detach Wi-Fi card and antenna connections
Remove cooling system and heat sink assembly
Internal Cable Management :
Disconnect keyboard and touchpad ribbon cables
Remove display cable and hinge connections
Detach audio board and speaker connections
Disconnect USB and power port flex cables
Label all cables for proper reassembly
Professional Motherboard Removal Process
Screw Identification & Removal :
Locate 8-10 Phillips #00 screws securing motherboard
Note different screw lengths for specific locations
Remove screws in star pattern to prevent warping
Keep screws organized by location on magnetic mat
Check for hidden screws under labels or stickers
Motherboard Separation :
Gently lift motherboard from front edge first
Check for any remaining cable connections
Lift at 15-degree angle to clear port openings
Place motherboard on anti-static surface immediately
Inspect motherboard for any visible damage
🔍 Business Component-Level Repair Options
Component
Common Issues
Repair Complexity
Tools Required
Business Value Impact
DC Power Jack
Loose connection, broken solder joints
Intermediate
Soldering iron, flux, solder
High (+$80-$120)
USB Ports
Physical damage, broken data pins
Advanced
Hot air station, solder paste
Medium (+$40-$70)
BIOS Chip
Corruption, password lock, update failure
Expert
BIOS programmer, chip extractor
Critical (+$100-$160)
VRM Components
Overheating, short circuits, capacitor failure
Expert
Multimeter, microscope, hot air
High (+$90-$140)
🔬 Professional Diagnostic Techniques
Visual Inspection Methods :
Check for burnt components or discolored areas
Inspect solder joints for cracks or cold solder
Look for liquid damage or corrosion indicators
Examine capacitors for bulging or leakage
Use magnification for detailed component inspection
Electrical Testing Procedures :
Use digital multimeter for continuity testing
Check power rails for shorts to ground
Measure resistance on critical circuits
Test voltage regulation module outputs
Verify clock generator functionality
🚧 Common Business Motherboard Issues
Power-Related Problems :
No power with AC adapter connected
Intermittent power loss during operation
Battery not charging despite good adapter
System powers on but immediately shuts down
LED indicators showing abnormal patterns
Performance & Stability Issues :
Random system freezing or crashing
Overheating despite clean cooling system
USB or peripheral connection problems
Audio or network connectivity issues
Display output problems on external ports
⚡ Professional Repair Techniques
Advanced Soldering & Desoldering
Surface Mount Component Replacement :
Use temperature-controlled soldering iron
Apply flux to improve solder flow and quality
Use solder wick for clean desoldering
Work quickly to prevent heat damage to board
Inspect joints under magnification after completion
BGA Component Work :
Use hot air rework station for BGA chips
Apply proper temperature profiles for specific components
Use stencils for precise solder paste application
Verify alignment before reflow process
Test thoroughly after BGA rework completion
BIOS Recovery & Programming
BIOS Chip Programming :
Use dedicated BIOS programmer
Backup original BIOS before any modifications
Verify checksums after programming completion
Test system stability after BIOS update
Document BIOS version and settings
BIOS Password Removal :
Use specialized tools for Dell password clearance
Follow manufacturer-specific procedures
Verify system functionality after password removal
Update to latest BIOS version after recovery
📊 Professional Testing & Validation
Post-Repair Testing Sequence :
Visual inspection of all repair work under magnification
Continuity testing on repaired circuits
Power-on test with minimal configuration
Full system assembly and comprehensive testing
Stress testing under business application loads
Business Function Validation :
Test all USB and Thunderbolt ports
Verify audio input/output functionality
Check network and wireless connectivity
Test security features (TPM, fingerprint reader)
Validate power management and battery charging
🔧 Advanced Troubleshooting Guide
No Power Conditions :
Check DC-in circuit and power MOSFETs
Verify 3.3V and 5V standby power rails
Test power button circuit functionality
Inspect BIOS chip and associated circuitry
Check for short circuits on main power rails
Boot Failures :
Verify CPU power delivery and VRM functionality
Check memory slot connectivity and power
Test clock generator and system clocks
Inspect chipset power and reset signals
Verify BIOS corruption or programming issues
Peripheral Issues :
Check USB data line continuity and termination
Verify audio codec power and clock signals
Test network controller power and data lines
Inspect display output circuits and connectors
Verify chipset communication with peripherals
💰 Business Laptop Value Impact Analysis
Repair Type
Cost Investment
Value Restored
ROI Percentage
Business Benefit
DC Jack Repair
$15-$30
$200-$300
667-2000%
Restores full mobile business functionality
USB Port Replacement
$20-$40
$150-$220
375-1100%
Enables peripheral connectivity for business use
BIOS Recovery
$25-$50
$250-$350
500-1400%
Critical for system boot and security features
VRM Repair
$30-$60
$280-$400
467-1333%
Essential for stable business performance
💼 Dell Latitude 5320-Specific Considerations
Manufacturer-Specific Features :
Dell Service Tag integration with motherboard
Proprietary BIOS recovery procedures
Specific power sequencing requirements
Integrated management engine firmware
Dell-specific security chip integration
Business Grade Components :
Military-grade testing and durability standards
Enhanced thermal management for sustained loads
Robust power delivery for business applications
Enterprise security feature integration
Long-term component availability
💡 Business Investment Tip: Successful motherboard-level repairs on Dell Latitude 5320 business laptops can yield 500-2000% ROI by restoring high-value corporate equipment, with properly documented component-level work actually increasing resale value by demonstrating professional maintenance and preserving the device's enterprise-grade security features and performance capabilities that business buyers highly value.
10. Where to Sell Your Upgraded Dell Latitude 5320: Business Laptop Resale Strategy
📈 2024 Business Laptop Market Overview
Current Market Trends :
Strong demand for reliable business-grade laptops
Corporate IT departments seeking cost-effective upgrades
Educational institutions refreshing technology inventory
Small businesses valuing Dell's enterprise features
Remote workers needing dependable mobile solutions
Dell Latitude 5320 Advantages :
11th Gen Intel processors still relevant for business use
Military-grade durability appeals to corporate buyers
Easy serviceability and upgrade potential
Compatibility with existing enterprise infrastructure
Strong brand recognition in business markets
💰 Professional Pricing Strategy
Business Laptop Value Enhancement Factors
Hardware Upgrades :
16GB RAM upgrade: +$80-$120 value
512GB SSD upgrade: +$100-$150 value
New battery: +$70-$110 value
Professional thermal repaste: +$30-$50 value
Complete cleaning and maintenance: +$40-$60 value
Business Features :
Working fingerprint reader: +$40-$70 value
Smart card reader functionality: +$50-$80 value
Backlit keyboard: +$30-$50 value
Dell ComfortView Plus display: +$60-$90 value
Complete driver and software setup: +$50-$80 value
2024 Dell Latitude 5320 Pricing Guide
Configuration
Base Value
Upgraded Value
Business Premium
Target Sale Price
i5/8GB/256GB Base
$350-$450
$480-$580
+$50-$80
$530-$660
i5/16GB/512GB Optimal
$450-$550
$580-$680
+$80-$120
$660-$800
i7/16GB/512GB Premium
$550-$650
$680-$780
+$100-$150
$780-$930
i7/32GB/1TB Maximum
$650-$750
$780-$880
+$120-$170
$900-$1050
📝 Business Laptop Listing Optimization
Title Optimization :
"Dell Latitude 5320 Business Laptop - [CPU] [RAM] [SSD] - Upgraded"
Include key business features: "Fingerprint, Backlit, Webcam"
Mention professional upgrades: "New SSD, Fresh Thermal Paste"
Highlight enterprise value: "Corporate Grade, IT Ready"
Use relevant keywords: "Business, Office, Remote Work"
Description Best Practices :
Lead with professional upgrades and improvements
Detail all business features and functionality
Include professional photos of actual condition
Mention Dell enterprise capabilities and durability
Provide honest assessment of cosmetic condition
📸 Professional Photography Guide
Essential Business Laptop Photos :
Front view with screen on (desktop visible)
Display functionality test (color test pattern)
Keyboard and trackpad close-ups
All port and connection points
Bottom cover with service tag visible
BIOS screen showing specifications
Any cosmetic imperfections (be transparent)
Professional Presentation Tips :
Use clean, neutral background for all photos
Ensure good lighting to show true condition
Include scale reference for size perspective
Show laptop in professional setting
Demonstrate all working features visually
🚚 Professional Shipping & Packaging
Business-Grade Packaging :
Use original Dell box if available (+$20-$30 value)
Double-box with ample bubble wrap protection
Include all original accessories and documentation
Use anti-static bags for additional protection
Include printed specifications and upgrade details
Shipping Best Practices :
Always require signature confirmation
Purchase shipping insurance for full value
Use tracked and insured shipping methods
Include business card or contact information
Provide tracking information immediately
📄 Professional Documentation Package
Essential Documentation :
Detailed specifications sheet
Upgrade and maintenance records
Professional photos of internal components
Benchmark results and performance metrics
BIOS settings and configuration details
Driver installation and optimization notes
Business Value Documentation :
Dell service tag verification printout
Warranty status and remaining coverage
Professional cleaning and maintenance records
Component testing and validation results
Business feature functionality verification
📅 Optimal Sales Timing Strategy
Time Period
Market Conditions
Pricing Strategy
Target Buyers
Recommended Action
January-February
Corporate budget refresh
Premium pricing
Business IT departments
List on SellBroke, corporate channels
June-August
Educational institution buying
Competitive pricing
Schools, universities
Target .edu surplus departments
September-October
Back-to-school, business Q4
Market pricing
Small businesses, students
Broad platform listing
November-December
Year-end budget spending
Premium pricing
Corporations, government
Focus on B2B platforms
🛡️ Professional Sales Risk Management
Fraud Prevention :
Use platform escrow services for high-value transactions
Verify buyer credentials for business sales
Require business verification for corporate buyers
Use tracked shipping with signature confirmation
Document entire sales process thoroughly
Dispute Resolution :
Maintain detailed photos and documentation
Keep records of all communications
Provide accurate condition descriptions
Offer reasonable return policies
Respond professionally to all inquiries
💼 Business Sales Tax Considerations
Record Keeping :
Document all purchase and upgrade costs
Keep receipts for components and tools
Track mileage and business expenses
Maintain separate business banking records
Consult with tax professional for specific advice
Sales Tax Compliance :
Understand state and local sales tax requirements
Collect and remit sales tax where required
Keep accurate sales records for tax reporting
Consider business registration if volume increases
Document business expense deductions properly
💡 Maximum Value Tip: For Dell Latitude 5320 business laptops, SellBroke typically offers 20-30% higher prices than general marketplaces for properly upgraded and documented units, while SellLaptopBack provides the fastest turnaround for individual units. Always prioritize business-focused platforms over consumer marketplaces to capture the corporate premium that business-grade equipment commands.
Need to Sell Your Dell Laptop? Get Instant Cash!
If your Dell Latitude 5320 (or other Latitude model) has performance issues or you're upgrading to a newer business laptop, we offer competitive cash payouts for your device. We buy broken, used, and refurbished Dell Latitude laptops—including all 5320 configurations—with free insured shipping and hassle-free evaluations.
Sell Popular Dell Models Now:
