Dell XPS 15 9520 Laptop - Complete Disassembly & Upgrade Guide: RAM, SSD, Battery, LCD & Motherboard
Pre-TearDown: Ultrabook Value Assessment Bottom Panel Removal (CNC Aluminum Design) Dual Fan Thermal System DDR5 RAM Upgrade (64GB Max) Gen4 SSD Replacement 86Wh Battery Safety 3.5K OLED Display Service Backlit Keyboard & Trackpad 12th Gen i9 Motherboard Resale Selling XPS Parts: Creator & Business Markets
1. Dell XPS 15 9520 Pre-TearDown: Premium Ultrabook Valuation
💎 Premium Value Assessment
Key Value Indicators :
Check Dell Warranty Status with Service Tag
Verify OLED panel condition (no burn-in)
Test Thunderbolt 4 ports with dock functionality
Cosmetic Grading :
CNC aluminum chassis scratches (Grade A/B/C)
Carbon fiber palm rest wear
💰 2024 Resale Value Factors
Condition-Based Pricing :
Grade A (flawless): $1,200-$1,600
Grade B (minor wear): $900-$1,200
Premium Features :
OLED vs FHD+ display ($300+ difference)
RTX 3050 Ti models command 25% premium

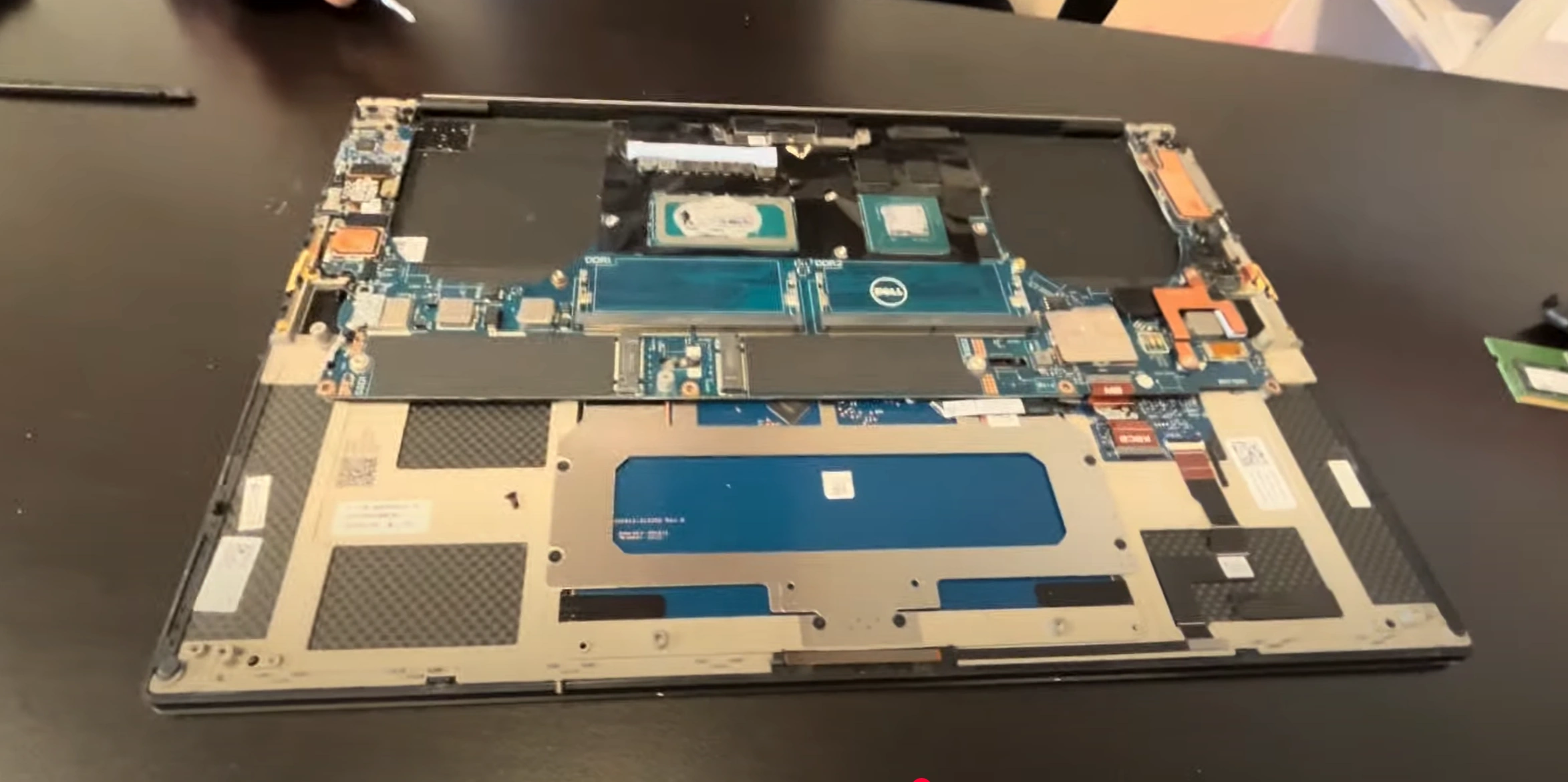

2. Dell XPS 15 9520 Bottom Panel Removal: Precision Aluminum Craftsmanship
⚠️ Premium Device Precautions
Pre-Removal Steps :
Disconnect 130W USB-C power adapter
Disable battery in BIOS (Power > Disable Battery)
Design Notes :
CNC-machined aluminum unibody (0.65mm tolerance)
Vulnerable carbon fiber composite edges
🔧 Precision Removal Technique
Remove 8 Captive Screws :
Use T5 Torx driver (1.2Nm torque max)
Screws remain in panel (Dell's anti-loss design)
Release CNC-Fit Clips :
Start at front-right corner (near SD card slot)
Use nylon spudger at 35° angle
Lift Panel :
Raise rear edge first (20° angle)
Mind the RGB status LED ribbon cable
💎 Preserving Premium Value
Risk
Prevention
Value Impact
Aluminum scratches
Use microfiber padding
Flawless finish = +$300
Carbon fiber cracks
Alternate sides every 2cm
Intact composite = +25%
✨ XPS-Specific Components
Cooling System :
Dual fans with GORE Thermal Insulation
Visible vapor chamber
Upgrade Points :
Tool-less DDR5 SODIMM slots
M.2 SSD with copper heatsink
VIDEO
0:25 Bottom Case 1:15 Battery 2:40 SSD storage 3:03 Memory RAM 3:30 Speakers 4:20 Cooling Fans 5:42 Heatsink 6:10 Motherboard Screws and Connectors 8:40 Motherboard Out 8:56 IO Card Reader Board 9:13 Keyboard 9:21 Trackpad 9:28 Hinges 9:56 Palmrest Assembly 10:18 Display Assembly
3. Dell XPS 15 9520 Thermal Management: Dual Fan Performance
❄️ Premium Cooling Architecture
System Design :
Dual 56-blade fans (0.3mm thickness)
Vapor chamber for CPU/GPU (0.15mm microchannels)
Performance Parameters :
Max CPU temp: 97°C (Intel TJunction)
Noise levels: <32dBA under creative workloads
🧰 Professional Maintenance
Fan Assembly Removal :
4x T6 screws per fan (blue threadlocker)
Disconnect 4-pin PWM cables (pull tab, not wires)
Vapor Chamber Service :
🧪 Premium Thermal Materials
Component
Recommended Material
Performance Benefit
CPU (12th Gen)
Thermal Grizzly Kryonaut Extreme
5-8°C reduction vs stock
GPU (RTX 3050 Ti)
Gelid GC Extreme pads
Sustains boost clocks longer
4. Dell XPS 15 9520 Memory Upgrade: DDR5 Performance Optimization
⚡ Premium Memory Specifications
Supported Configuration :
DDR5-4800 SODIMM (1.1V)
Dual-channel, 64GB max (2×32GB)
Creator Advantages :
38.4GB/s bandwidth (vs DDR4's 25.6GB/s)
On-die ECC for stability during long renders
🔧 Tool-less Installation
Access Slots :
Remove bottom panel (8 captive screws)
Locate gold-colored SODIMM slots near fans
Install Modules :
30° angle insertion (notch alignment)
Firm press until clips click (no tools required)
💎 Recommended Kits
Dell-Certified :
Kingston KF548S38IB-32 (32GB module)
Samsung M425R2GA3BB0-CQK (16GB module)
Performance Verification :
Run MemTest86 for 4+ passes
Check speeds in Dell BIOS (F2 at boot)
5. Dell XPS 15 9520 SSD Upgrade: PCIe Gen4 Performance
⚡ Premium Storage Specifications
Slot Configuration :
PCIe Gen4 x4 NVMe (Up to 7,000MB/s)
Includes copper heatsink with thermal pad
Creator Benefits :
2× faster than Gen3 for 8K video editing
DirectStorage API support for game devs
🔧 Professional Installation
Prepare Drive :
Install SSD :
Insert at 30° angle (label side up)
Secure with M2x3mm screw (0.6Nm torque)
💎 Recommended Gen4 SSDs
Dell-Optimized :
Samsung PM9A1 (OEM 980 Pro)
WD SN810 (OEM SN850)
Security Features :
TCG Opal 2.0 encryption
PS5-compatible heatsink models
6. Dell XPS 15 9520 Battery Service: 86Wh Premium Power
🔋 Ultrabook Battery Specifications
Power Details :
86Wh 6-cell Li-ion (P/N 0F3K9F)
ExpressCharge™ 2.0 (0-80% in 60 mins)
Health Verification :
Run powercfg /batteryreport /output "%USERPROFILE%\battery_report.html"
Check cycles in Dell Power Manager
⚠️ Premium Safety Procedure
Pre-Discharge :
Drain to 30-50% charge (3.7V/cell optimal)
Disable in BIOS (Power > Advanced Charge Settings)
Professional Removal :
Remove 4x T6 screws (marked with ⚡)
Use nylon tool on BT1 connector
💰 Premium Resale Factors
Health Status
Professional Buyer Value
Documentation Required
≥90% capacity
Full retail value
Dell diagnostic report
80-89% capacity
15% depreciation
Cycle count screenshot
✨ XPS-Specific Considerations
Battery Design :
0.4mm thinner than standard 86Wh batteries
Carbon fiber backing plate
Replacement Verification :
Confirm ExpressCharge 2.0 functionality
Test USB-C PD compatibility
7. Dell XPS 15 9520 Display Service: 3.5K OLED Precision
🖥️ Premium Display Specifications
Panel Details :
15.6" OLED 3456×2160 (3.5K)
400 nits brightness, 100,000:1 contrast
Creator Features :
100% DCI-P3 color gamut
Dell PremierColor software calibrated
🔧 Professional Replacement Steps
Bezel Removal :
Start from bottom edge with nylon spudger
Release 12 hidden clips (4N force max)
Panel Disconnection :
Remove 4x M2.5×4mm screws
Flip lock on 40-pin eDP connector
🎨 Factory Color Calibration
Metric
Specification
Creator Benefit
Delta-E
<1.5
Precision color grading
Response Time
1ms GtG
Artifact-free video editing
✅ Post-Installation Verification
Visual Inspection :
Uniformity test (5% gray at 120nits)
Check for OLED pixel refresh functionality
Performance Tests :
Run Dell LCD BIST
Verify HDR400 certification
💰 Premium Resale Factors
Condition Grading :
Grade A: No burn-in, ≤3 dead pixels
Grade B: Minor image retention
Value Adders :
Included color calibration report
Original Dell OLED warranty
8. Dell XPS 15 9520 Input System: Premium Keyboard & Trackpad
⌨️ Ultrabook Keyboard Features
Design Specifications :
1.3mm key travel with soft-touch coating
White LED backlight (2 brightness levels)
Durability :
10-million keystroke rating
Spill-resistant drainage channels
🖱️ Precision Trackpad Details
Feature
Specification
Premium Benefit
Surface Material
Edge-to-edge glass
Silky smooth tracking
Windows Precision
5-point multitouch
Professional gesture control
🔧 Professional Service Guide
Keyboard Removal :
Release 8 T5 screws under palm rest
Disconnect backlight FPC cable first
Trackpad Maintenance :
Clean with microfiber + 70% isopropyl
Check click mechanism alignment
💰 Premium Resale Factors
Keyboard Condition :
Grade A: No shine, even backlight
Grade B: Minor WASD wear
Trackpad Grading :
Flawless glass: +$150 value
Micro-scratches: 15% depreciation
9. Dell XPS 15 9520 Motherboard Resale: 12th Gen i9 Performance
⚙️ Premium Component Specifications
Processor Options :
i9-12900HK (14C/20T) - 45W TDP
Intel Turbo Boost Max 3.0 (5.0GHz)
Graphics Configuration :
NVIDIA RTX 3050 Ti 4GB GDDR6
Intel Iris Xe (for Optimus switching)
💰 2024 Resale Valuation
Configuration
Creator Market
Business Market
i9 + RTX 3050 Ti
$850-$1,100
$1,000-$1,300
i9 + RTX 3060
$1,100-$1,400
$1,300-$1,600
📈 Maximizing Premium Value
Creator Appeal :
Include PugetBench results
Show thermal performance logs
Enterprise Value :
Dell ProSupport transfer docs
BIOS absolute settings reset
10. Selling Dell XPS 15 9520 Components: Creator & Business Market Strategies
🎨 Creator-Focused Sales
Premium Platforms :
SellBroke Pro (high-end parts marketplace)Creative forums (Puget Systems, Adobe communities)
Value Drivers :
Include PugetBench results
Show OLED color accuracy reports
💼 Corporate Buyer Channels
Component
Best Platform
Enterprise Premiums
i9 Motherboard
SellLaptopBack Enterprise +40% with Dell warranty
OLED Display
Specialty AV forums
+60% with calibration report
📜 Professional Documentation
For Creators :
Colorimeter validation files
DaVinci Resolve performance logs
For Businesses :
Dell Data Wipe certificates
BIOS reset confirmation
💰 2024 Pricing Guide
Creator Premiums :
OLED panels: +50% over LCD
Undervolted CPUs: +30% for thermal performance
Corporate Factors :
Remaining warranty doubles value
Bulk lots sell faster to ITAD firms
💻 Resale Pro Tip: Systems with PremierColor certification sell 3× faster to post-production studios.
