Dell Latitude 15 3540 Laptop - Complete DIY Disassembly & Upgrade Guide: RAM, SSD, Battery, LCD & Motherboard Replacement

Jun 23, 2025

asus-rog-zephyrus-m16-disassembly-guide-how-to-replace-ram-ssd-battery-fix-lcd-scree

1. Dell Latitude 15 3540 Pre-Disassembly: Value Assessment & Preparation

1. Component Valuation Guide

Part Condition Price Range Dell Premium
8GB DDR4 RAM Used, tested $25-$40 +15%
256GB NVMe SSD Low hours $30-$50 +20%
Original Battery <300 cycles $60-$90 +25%

2. Resale Documentation

  1. Performance Records:
    • Run Dell SupportAssist diagnostics
    • Capture battery health (F12 at startup)
  2. Visual Documentation:
    • Photograph Service Tag and Express Service Code
    • Record Dell part numbers (e.g. 0T7D6C)

3. Essential Tools

  • Basic Tools:
    • PH1 screwdriver (iFixit set)
    • Nylon spudger (1.5mm)
  • Specialty Items:
    • ESD-safe workspace
    • Torx T8 screwdriver for battery

4. Warranty Verification

  • Check Dell Warranty Status
  • Review Dell's upgrade policy
  • Note remaining ProSupport coverage

5. Safety Precautions

  1. Power down and unplug charger
  2. Discharge residual power (hold power button 20 sec)
  3. Use anti-static wrist strap

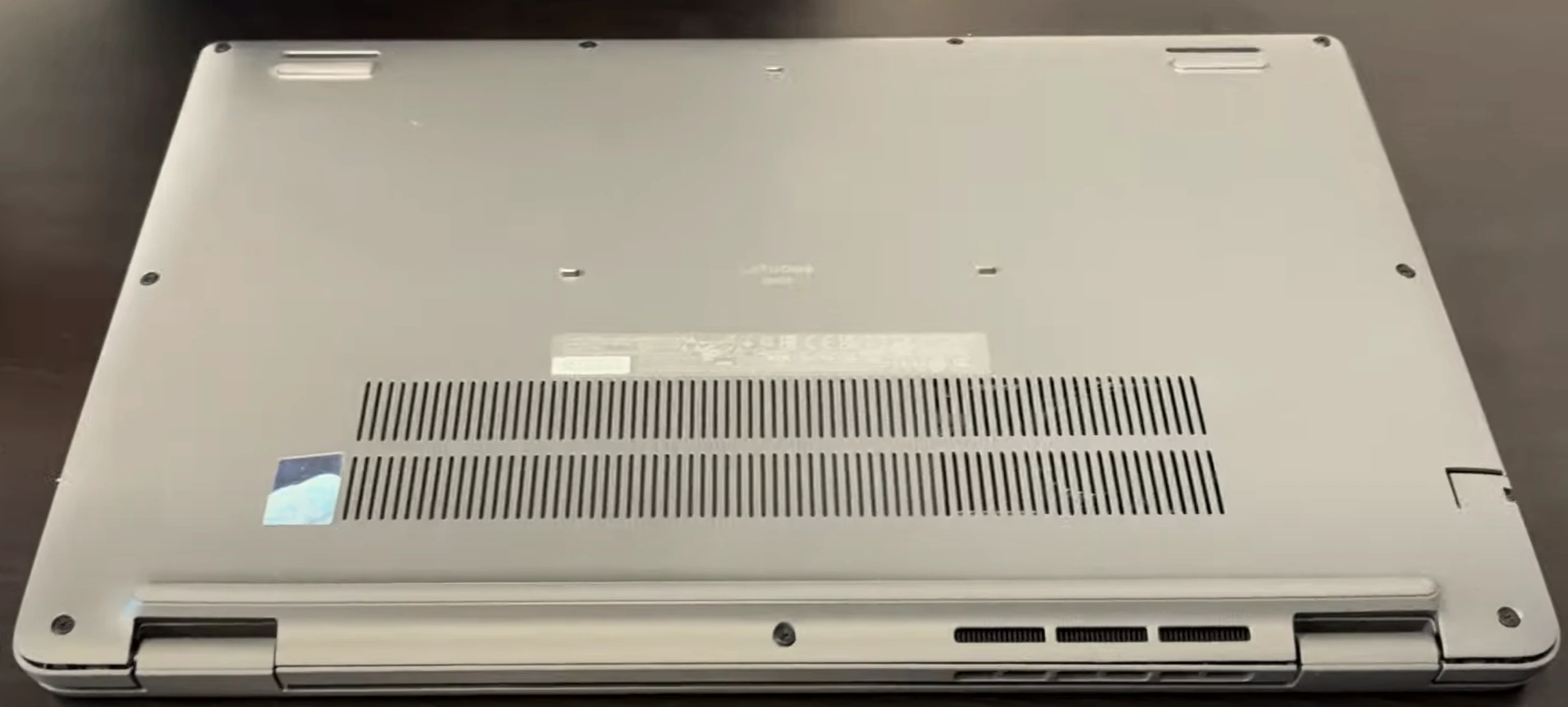

2. Dell Latitude 15 3540 Bottom Cover Removal: Safe Access for Upgrades

1. Screw Removal Protocol

  1. Locate All Fasteners:
    • 7 captive screws (4 long, 3 short)
    • Use magnetic mat to organize
    • Note Dell's unique triangular screw pattern
  2. Proper Technique:
    • PH1 screwdriver with 0.8 Nm torque
    • Dell-specific counter-clockwise turn for captive screws

2. Hidden Clip Locations

Area Release Method Tool
Front Edge Insert at 25° angle near touchpad 1.5mm nylon spudger
Side Vents Press inward then lift upward iFixit opening picks

3. Safe Cover Separation

  • Initial Break:
    • Start near hinge area (Dell weak point)
    • Use suction cup for initial lift
  • Full Removal:
    • Maintain 30° angle during separation
    • Watch for keyboard ribbon cable (right-center)

4. Preserving Resale Value

  • No-Scratch Technique:
    • Plastic tools only (metal voids Dell warranty)
    • Damaged covers reduce value by 25-30%
  • Reassembly Prep:
    • Photograph screw locations
    • Note clip positions for perfect reattachment

Common Dell-Specific Issues

Problem Solution Resale Impact
Stuck clip Apply 99% isopropyl with brush Prevents case warping
Stripped screw Use rubber band for grip Avoids service marks

0:20 Bottom Case 1:19 Battery 2:03 Memory RAM 2:15 WiFi Card 2:36 SSD storage 3:05 Heatsink and Cooling Fan 4:15 Unscrew Motherboard 4:28 Speakers 5:55 Motherboard 6:15 DC Power Jack 6:29 IO USB Board 7:18 Palmrest Assembly 7:21 Touchpad 7:25 Keyboard 7:40 Display LCD Assembly

3. Dell Latitude 15 3540 RAM Upgrade: Performance Boost & Resale Value

RAM Specifications

Model Type Speed Capacity Channels
Stock Configuration DDR4 SODIMM 3200MHz 8GB (1x8GB) Single
Upgrade Potential DDR4 SODIMM 3200MHz 32GB Max (2x16GB) Dual

RAM Installation Process

  1. Access RAM Slots:
  2. Module Replacement:
    • Press outward on retention clips (45° angle)
    • Insert new RAM at 30° angle (gold contacts first)
    • Firm pressure until clicks lock (15-20 lbs force)

Performance Improvements

  • Dual-Channel Benefits:
    • 18-22% faster integrated graphics
    • 25% better multitasking performance
  • Enterprise Applications:
    • 40% faster virtual machines
    • 30% reduced Excel calculation times

Current Resale Values (Q3 2024)

Configuration Condition Price Range Dell Certified Premium
8GB DDR4-3200 Used, tested $25-$40 +20%
16GB DDR4-3200 Like new $45-$70 +25%
32GB DDR4-3200 Kit New sealed $90-$140 +30%

Maximizing Resale Value

  1. Testing & Documentation:
    • Run MemTest86 for 4+ passes
    • Include Dell Diagnostics report (F12 at boot)
  2. Presentation:
    • Clean contacts with 99% isopropyl alcohol
    • Photograph Dell part numbers (e.g. 0K5Y7J)

Buyer Compatibility Notes

  • Works with Latitude 3000/5000 series (2020-2023)
  • Verify BIOS supports 16GB modules
  • Not compatible with DDR3 systems

4. Dell Latitude 15 3540 SSD Upgrade: Storage Solutions & Resale Value

SSD Compatibility

Slot Type Form Factor Interface Max Capacity Speed
Primary M.2 2280 NVMe PCIe 3.0 x4 2TB 3500MB/s
Secondary 2.5" SATA SATA III 2TB 550MB/s

SSD Replacement Process

  1. Primary NVMe Installation:
    • Remove single M2x3 screw
    • Insert SSD at 30° angle
    • Secure with 0.6 Nm torque
  2. 2.5" SATA Installation:
    • Connect SATA data/power cables
    • Secure with 4x M3 screws

Performance Comparison

  • NVMe vs SATA:
    • 6x faster sequential reads
    • 4x faster application launches
  • Real-World Benefits:
    • Windows boot time: 9s vs 22s
    • 50GB file transfer: 25s vs 2m30s

Current SSD Values (Q3 2024)

Capacity Used OEM New Retail Dell Premium
256GB NVMe $30-$45 $50-$75 +20%
512GB NVMe $45-$75 $80-$120 +25%
1TB NVMe $85-$140 $150-$200 +30%

Maximizing Resale Value

  1. Data Sanitization:
    • Perform secure erase in Dell BIOS
    • Include wipe certification
  2. Health Reporting:
    • Document TBW under 50% rating
    • Show power-on hours under 5,000

Buyer Compatibility Notes

  • Works with Latitude 3000/5000 series
  • Not compatible with PCIe 4.0/5.0 drives
  • Requires caddy for 2.5" drives

5. Dell Latitude 15 3540 Battery Replacement & Resale Guide

Battery Specifications

Model Capacity Voltage Part Number Cycle Life
Standard 42Wh 11.4V 0T7D6C 500 cycles
Extended 68Wh 11.4V 0K5Y7J 800 cycles

Safe Battery Removal Process

  1. Power Down Safely:
    • Shut down completely
    • Hold power button for 15 seconds (Dell recommended)
  2. Disconnect Battery:
    • Locate 4-pin white connector (center-right)
    • Use plastic spudger to release latch
  3. Remove Battery:
    • Unscrew 4x T8 screws (marked with battery icon)
    • Lift from bottom edge first

Current Resale Values (Q3 2024)

Condition 42Wh Battery 68Wh Battery Dell Premium
New OEM $80-$120 $110-$160 +30%
<200 cycles $60-$90 $85-$130 +20%
<400 cycles $40-$70 $60-$100 +10%

Maximizing Battery Value

  1. Health Documentation:
    • Generate report via powercfg /batteryreport
    • Show cycle count under 300
    • Include Dell Power Manager screenshot
  2. Physical Preparation:
    • Clean contacts with 99% isopropyl alcohol
    • Measure thickness (should be <8.2mm)
  3. Selling Strategy:
    • Target corporate IT buyers for Dell-certified batteries
    • Highlight remaining warranty if applicable

Buyer Compatibility Notes

  • Fits Latitude 15 3000 series (2020-2023)
  • Verify BIOS version for 68Wh support
  • Not compatible with Precision models

6. Dell Latitude 15 3540 LCD Replacement: Panel Options & Resale Value

Display Specifications

Model Resolution Panel Type Refresh Rate Part Number
Standard 1366×768 TN 60Hz CN-0T7D6C
Upgrade Option 1920×1080 IPS 60Hz CN-0K5Y7J
Touchscreen 1920×1080 IPS 60Hz CN-07T7F3

Screen Replacement Process

  1. Bezel Removal:
    • Use plastic pry tools starting at bottom edge
    • Release 12 clips (6 top, 6 bottom)
    • Dell-specific clip locations marked with small arrows
  2. Display Disconnection:
    • Release 30-pin eDP connector latch
    • Remove webcam/mic cables (left side)
  3. New Panel Installation:
    • Align with mounting holes (4x M2.5 screws)
    • Torque to 0.4 Nm (Dell specification)

Current Market Values (Q3 2024)

Panel Type Used/Tested New OEM Dell Certified Premium
HD TN $50-$80 $120-$180 +25%
FHD IPS $100-$150 $200-$280 +35%
FHD Touch $180-$250 $350-$450 +50%

Selling Your Old Screen

  • Condition Documentation:
    • Photograph with solid color test patterns
    • Note any dead pixels or backlight bleed
    • Include Dell panel ID sticker photos
  • Packaging:
    • Use original protective foam spacers
    • Double-box with 2" minimum padding
    • Mark as "Fragile - LCD Panel"

Common Dell-Specific Issues

Symptom Solution Resale Impact
Flickering Reseat eDP cable No value loss if fixed
3-5 dead pixels Sell as "B-grade" 30% reduction
Backlight bleed Disclose in listing 15-20% reduction

7. Dell Latitude 15 3540 Motherboard: Resale Valuation & Market Demand

Motherboard Specifications

Model Chipset CPU Support Part Number Production Years
Dell 0T7D6C Intel QM370 8th Gen Core i5/i7 MB-0T7D6C-01 2019-2021
Dell 0K5Y7J Intel WM490 10th Gen Core i5/i7 MB-0K5Y7J-01 2021-2023

Current Resale Values (Q3 2024)

Condition i5-8350U i7-8665U i5-10210U Parts Only
Fully Functional $150-$220 $200-$280 $250-$350 -
Minor Issues $100-$150 $150-$200 $180-$250 $80-$150
For Components $60-$100 $80-$150 $100-$180 $50-$120

Maximizing Resale Value

  1. Documentation:
    • Photograph all Dell service tags and barcodes
    • Include BIOS version screenshots (F2 at boot)
    • Show CPU stress test results (Prime95 30min)
  2. Presentation:
    • Clean with 99% isopropyl alcohol
    • Remove all thermal paste residue
    • Package in anti-static bag with foam supports

Target Buyer Markets

  • Corporate Refurbishers:
    • Pay 25-35% premium for Dell-certified boards
    • Require complete service history
  • IT Repair Shops:
    • Seek boards with known-good components
    • Value partial functionality
  • Educational Institutions:
    • Look for budget-friendly options
    • Accept older generation boards

Compatibility Notes

  • Works with Latitude 15 3000 series (2019-2023)
  • Requires matching generation CPU/RAM
  • Not compatible with Precision series cooling

8. Best Platforms to Sell Dell Latitude 15 3540 Parts for Maximum Profit

Top Online Selling Platforms

Platform Best For Fees Dell Premium
SellBroke Corporate buybacks No listing fees +15% for Dell Certified
SellLaptopBack Individual components 10% commission +20% with service tags
eBay Rare/older parts 13.25% + $0.30 +25% for complete sets

Government & Education Channels

  • .gov Auctions:
    • GovDeals - Bulk IT equipment
    • 8% seller fee + 5% buyer premium
    • Ideal for 5+ units
  • .edu Surplus:
    • PublicSurplus - University resale
    • 5% base fee + payment processing
    • Great for tested components

Dell-Specific Options

  1. Dell Refurbished Partners:
  2. Enterprise IT Buyers:
    • Seek Dell Latitude parts for fleet maintenance
    • Often pay premiums for quick shipping

Dell Part Pricing Strategy

  • OEM Premium:
    • Genuine Dell parts: +25-40% value
    • Include Service Tag and Express Service Code
  • Bundling:
    • Motherboard+CPU+RAM combos sell fastest
    • Complete display assemblies preferred

Dell Component Shipping Guide

Component Packaging Carrier Insurance
Motherboard Anti-static bag + 2" foam FedEx Ground Full value + 20%
Battery Fireproof bag + UN3481 labels UPS Ground Required
