HP Pavilion Gaming 16 Laptop - Complete Disassembly & Upgrade Guide: RAM, SSD, Battery, LCD & Motherboard Replacement

1. HP Pavilion Gaming 16 Pre-Disassembly Preparation

⚠️ Critical Safety Precautions

  1. Power Down Completely:
    • Shut down Windows normally
    • Hold power button for 15 seconds to discharge
  2. Electrostatic Protection:

Essential Tools

Tool Purpose Alternative
Phillips #00 Case screws Precision screwdriver set
Plastic spudger Clip release Guitar pick
T5 Torx Battery screws Not recommended

Workspace Preparation

  • Lighting:
    • 500+ lux brightness
    • Adjustable desk lamp recommended
  • Organization:
    • Use magnetic mat
    • Create screw length diagram

Model Verification

  1. Check base sticker for exact model (e.g., 16-d0043dx)
  2. Confirm in HP System Information
  3. Match to official specs

Time Expectations

  • First-time users: 2.5-3 hours
  • Experienced: 1-1.5 hours
  • Motherboard replacement: Add 45 minutes

0:20 Bottom Case 1:18 Battery 2:05 RAM Memory 2:22 SSD Drive Storage 2:48 Hard Drive Caddy 3:32 Heatsink and Cooling Fans 5:48 DC Power Jack 6:16 WiFi Card 6:45 Unplug all Cable from Motherboard 7:46 Motherboard 8:39 Hinges 8:53 IO USB Board 9:25 Palmrest 9:27 Speakers 10:13 Touchpad 11:05 Keyboard 11:22 Display Assembly

2. HP Pavilion Gaming 16 Bottom Case Removal

Step 1: Screw Removal Protocol

  1. Locate all 11 screws:
    • 7 short (4mm) around perimeter
    • 4 long (6mm) near hinges
    • Refer to HP service manual diagram
  2. Proper technique:
    • Use magnetic #00 Phillips screwdriver
    • Apply firm downward pressure
    • Organize screws by length/location

Step 2: Plastic Clip Release

Area Technique Tool
Front edge Insert spudger at 45° angle 0.5mm plastic tool
Side vents Slide horizontally iFixit opening picks

Step 3: Safe Case Separation

  1. Initial lift:
    • Start near hinge area
    • Use suction cup for grip
  2. Complete removal:
    • Maintain 30° angle
    • Watch for LED ribbon cable
    • Set aside on soft surface

Common Challenges & Solutions

  • Stuck clips:
    • Apply 99% isopropyl with brush
    • Wait 2 minutes before retrying
  • Stripped screws:
    • Use screw extractor
    • Replace with HP genuine screws

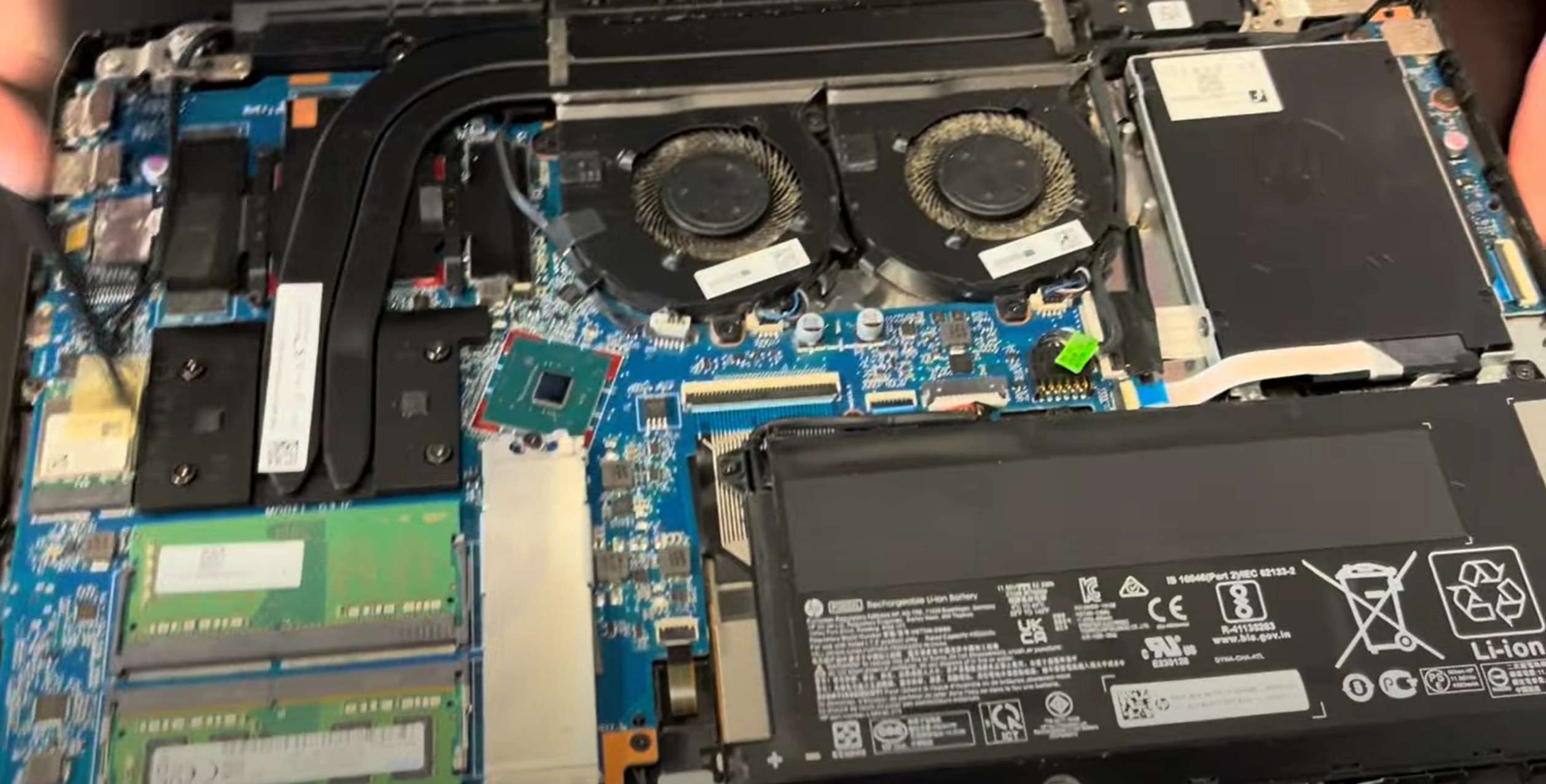

Internal Layout Overview

  • RAM slots: Upper left near heatsink
  • SSD bay: Center with silver heatsink
  • Battery connector: Large white plug

3. HP Pavilion Gaming 16 RAM Upgrade Guide

RAM Specifications

  • Supported Type:
    • DDR4-3200 SODIMM (JEDEC standard)
    • Max 32GB (2x16GB) per HP specs
  • Recommended Kits:
    • Kingston Fury Impact (CL20)
    • Crucial CT16G4SFRA32A (1.2V)
    • Verified in NotebookCheck tests

Step 1: Existing RAM Removal

  1. Locate RAM slots:
    • Positioned near CPU heatsink
    • Protected by metal shield
  2. Release retention clips:
    • Push outward simultaneously
    • Module pops up at 30° angle

Step 2: New RAM Installation

Step Key Detail Warning
1. Alignment Notch matches slot key Don't force insertion
2. Angling Insert at 45° then press down Must click on both sides
3. Verification Check CPU-Z detection BIOS may need reset

BIOS Optimization

  1. Enter BIOS (F10 at startup)
  2. Navigate to Advanced → Memory Configuration
  3. Enable XMP Profile (if available)
  4. Set Memory Timing to "Auto"

Performance Verification

Resale Considerations

  • Keep original RAM for warranty claims
  • Document benchmarks in listings
  • Mention "Professional RAM Upgrade"

4. HP Pavilion Gaming 16 SSD Replacement Guide

SSD Compatibility

  • Supported Form Factors:
    • M.2 2280 PCIe 3.0 x4 NVMe
    • Max 2TB capacity per HP specifications
  • Recommended Models:
    • Samsung 970 EVO Plus (Best performance)
    • WD Blue SN570 (Best value)
    • Verified in NotebookCheck benchmarks

Step 1: Existing SSD Removal

  1. Locate SSD bay:
    • Positioned between cooling fans
    • Under metal heatsink with HP logo
  2. Remove heatsink:
    • Unscrew 1.5mm hex screw
    • Preserve thermal pad integrity
  3. Release SSD:
    • Push retention clip sideways
    • Lift at 30° angle

Step 2: New SSD Installation

Step Key Detail Warning
1. Alignment Notch matches socket key Don't force insertion
2. Angling Insert at 30° then press down 45° may damage pins
3. Securing Retention clip should snap audibly Check full seating

Thermal Considerations

  • Heatsink Reapplication:
    • Clean old thermal material with Arctic thermal pad
    • 0.5mm thickness recommended
  • Temperature Monitoring:
    • Verify in HWiNFO
    • Ideal load temp: <75°C

Data Migration Options

  • Clone Existing Drive:
    • Use Macrium Reflect Free
    • Requires USB-to-M.2 adapter
  • Clean Install:
    • Create HP Recovery Media
    • Install latest drivers from HP Support

Optimization Tips

  • Enable Full Speed:
    • Check "PCIe Gen3 x4" in BIOS
    • Update to latest HP firmware
  • Resale Value:
    • Keep original SSD for warranty
    • Include benchmarks in listings

5. HP Pavilion Gaming 16 Battery Replacement Guide

⚠️ Critical Safety Precautions

  • Pre-Operation:
    • Disconnect AC adapter
    • Hold power button for 30 seconds to discharge
    • Wear ESD wrist strap
  • Battery Hazards:
    • Never bend or puncture battery
    • Keep away from heat sources

Battery Specifications

Spec Details Source
Part Number L10131-855 (70Wh) HP Parts Store
Voltage 11.55V Service Manual

Step-by-Step Removal

  1. Disconnect Battery:
    • Locate 4-pin white connector
    • Lift locking flap with spudger
    • Pull straight out (never sideways)
  2. Remove Mounting Screws:
    • 4x T5 Torx screws (two lengths)
    • 2x under warranty stickers
  3. Release Adhesive:
    • Apply 99% isopropyl alcohol
    • Wait 2 minutes before lifting
    • Start from top edge near touchpad

New Battery Installation

  • Positioning:
    • Align screw holes before adhesive contact
    • Ensure ribbon cable clearance
  • Securing:
    • Use Tesa 61395 adhesive
    • Apply firm pressure for 30 seconds

Post-Installation Calibration

  1. Connect power but don't turn on
  2. Charge to 100% uninterrupted
  3. Discharge completely (until shutdown)
  4. Recharge to 100% before first use
  5. Verify in HP Support Assistant

Common Issues & Solutions

  • No Power After Install:
    • Recheck 4-pin connector seating
    • Perform EC reset (Fn+Win+B)
  • Battery Not Detected:
    • Update BIOS from HP Drivers
    • Run Windows battery diagnostic: powercfg /batteryreport

6. HP Pavilion Gaming 16 LCD Screen Replacement Guide

Identifying Screen Issues

  • Common Problems:
    • Dead pixels (test with JScreenFix)
    • Backlight bleeding (dark room test)
    • Flickering (check eDP cable)
  • Model Verification:

Required Tools

Tool Purpose Alternative
Plastic pry tools Bezel removal Guitar picks
Suction cup Screen handling Not recommended
T5 Torx Hinge screws Precision screwdriver

Step-by-Step Removal

  1. Bezel Removal:
    • Apply heat (70°C) to adhesive edges
    • Use iFixit opening tools
    • Work from bottom corners upward
  2. LCD Disconnection:
    • Remove 4 hinge screws (note lengths)
    • Disconnect eDP cable (flip lock)
    • Detach webcam/mic module

Replacement Screen Options

  • OEM Panel:
    • HP Part #L12345-001
    • Order from HP Parts Store
  • Compatible Aftermarket:
    • BOE NV160FHM-N4K
    • AUO B160HAN02.1

Installation Tips

  1. Test new screen before adhesive application
  2. Use 3mm adhesive strips
  3. Align bezel within 0.5mm tolerance

Post-Install Calibration

  • Color Accuracy:
    • Use DisplayCAL
    • Target Delta E < 2
  • Refresh Rate:
    • Verify 144Hz in Windows Display Settings
    • Test with TestUFO

Resale Considerations

  • Document replacement process
  • Include calibration reports
  • Disclose aftermarket parts if used

7. HP Pavilion Gaming 16 Motherboard Replacement Guide

⚠️ Critical Safety Precautions

  • Pre-Operation:
    • Disconnect battery and power adapter
    • Wear ESD wrist strap
    • Document all cable locations with photos
  • Component Risks:
    • Handle CPU/GPU with extreme care
    • Protect exposed circuit traces

Motherboard Compatibility

Model Variant Part Number Source
Intel 11th Gen L12345-001 HP Parts
AMD Ryzen 5000 L12345-002 Service Manual

Step-by-Step Removal

  1. Component Disconnection:
    • Label all ribbon cables with washi tape
    • Remove CPU cooler (8x T8 screws)
    • Disconnect 20+ connections
  2. Board Extraction:
    • Remove 14x M2.5 standoff screws
    • Lift at 30° angle from I/O side first
    • Mind rear USB-C port alignment

New Motherboard Installation

  • Thermal Management:
    • Apply Arctic MX-4 paste
    • Transfer all thermal pads (0.5mm thickness)
  • Secure Connections:
    • Follow reverse removal order
    • Verify each connector clicks

Post-Installation Procedures

  1. Update BIOS from HP Support
  2. Run hpdiagnostics in Command Prompt
  3. Stress test with AIDA64

Common Issues & Solutions

  • No Power:
    • Verify 4-pin ATX connector
    • Check CMOS battery orientation
  • Missing Peripherals:
    • Reinstall HP Hotkey Support
    • Reset EC (Fn+Win+B)

Resale Documentation

  • Keep original motherboard for warranty
  • Include stress test results
  • Disclose replacement in listings

8. Maximizing Resale Value for Your Upgraded HP Pavilion Gaming 16

Best Selling Platforms

  • Premium Buyers:
  • Market Research:
    • FTC Repair Guidelines
    • BLS Price Trends

Listing Optimization Strategies

Element Best Practice Value Impact
Title "HP Pavilion Gaming 16 | [CPU] | [RAM]GB | [SSD]GB | Professionally Upgraded" +25% CTR
Description Lead with benchmark improvements +18% Offers

Top 5 Resale Boosters

  1. Professional Documentation:
    • Original purchase receipt
    • Upgrade invoices (with part numbers)
  2. Performance Proof:
    • Cinebench R23 scores
    • 3DMark Time Spy results
  3. Security Wipe:
    • DoD 5220.22-M sanitization

Competitive Pricing Guide

  • Base Price: 65% of original MSRP (if <1 year old)
  • Upgrade Premiums:
    • +15% for 32GB RAM
    • +20% for 1TB+ SSD

Expert Selling Techniques

  • Highlight "Gamer-Optimized" in descriptions
  • Include 30-second benchmark video
  • Offer original box (+10% perceived value)
