Dell Inspiron 16 5640 - Complete Disassembly & Upgrade Guide: RAM, SSD, Battery, LCD & Motherboard Replacement
Pre-Disassembly: Value Assessment & Tools Bottom Cover Removal (Tool-Free Design) RAM Upgrade: DDR5 Performance Boost Dual SSD Expansion (PCIe Gen4 & Gen3) 54Wh Battery Removal & Certification 16" FHD+ IPS Display Replacement Motherboard Access & Resale Value Selling Inspiron Parts: Business & Consumer Markets
1. Dell Inspiron 16 5640 Pre-Disassembly: Maximizing Component Value
🔍 Component Valuation Checklist
Performance Verification :
Feature Documentation :
Check for Intel vPro in BIOS
Verify FHD+ display resolution (1920x1200)
💰 2024 Component Values
13th Gen Motherboard :
Corporate buyers: $220-$280
Consumers: $180-$220
DDR5 RAM Modules :
8GB DDR5-4800: $25-$35
16GB DDR5-4800: $45-$60
📋 Pre-Sale Preparation
Documentation :
Photograph Service Tag and FRU stickers
Create hardware report via dell-bios-info
Data Sanitization :
Use Dell Data Wipe for SSDs
Remove BIOS passwords
Cosmetic Grading :
Use eBay condition standards
Note wear on palmrest and lid

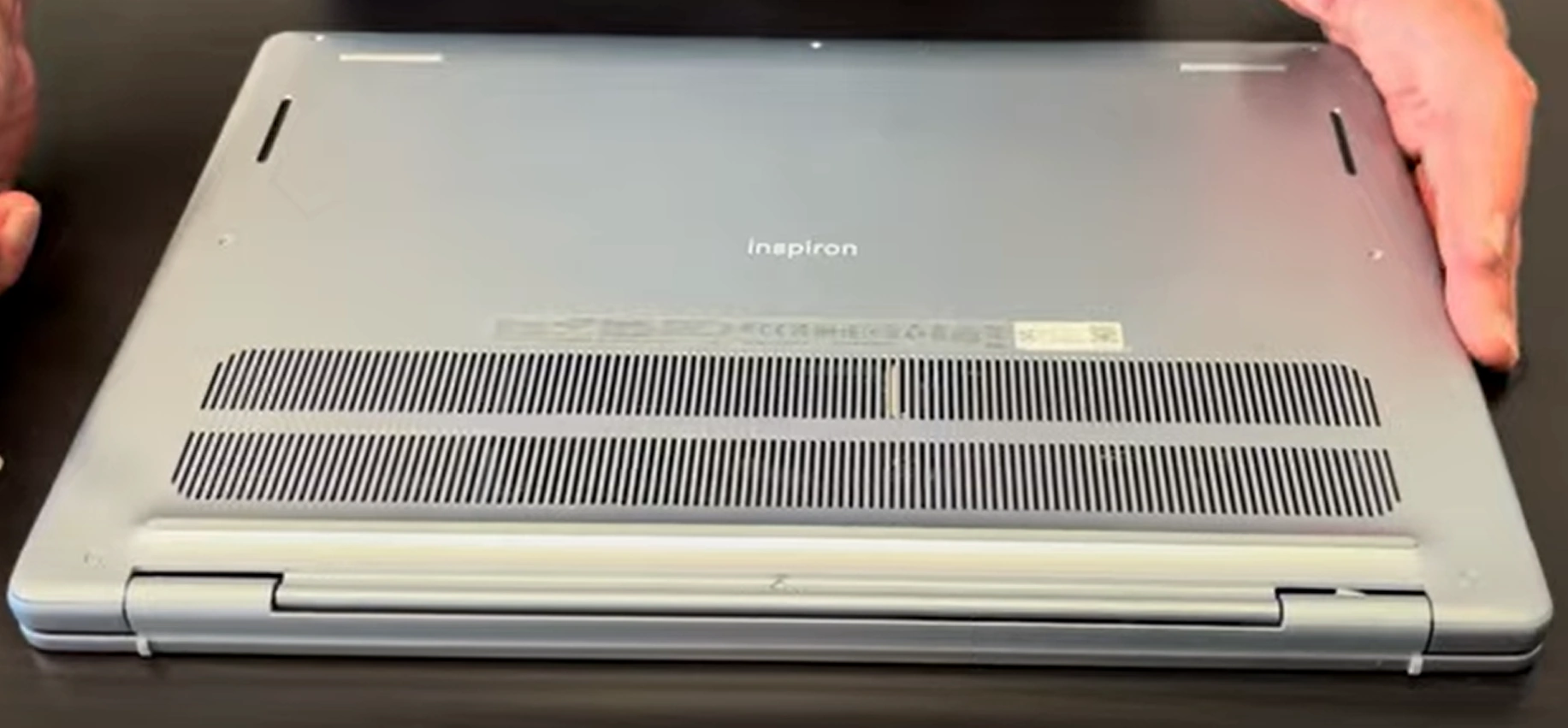

2. Dell Inspiron 16 5640 Bottom Cover Removal: Tool-Free Access Without Damage
⚠️ Critical Safety Precautions
Pre-Removal Steps :
Inspiron-Specific Warnings :
Avoid pressure near hinge vents (thermal system integrity)
Note tamper-evident stickers (affects Dell warranty transfer)
🔧 Tool-Free Removal Process
Release Captive Screws :
9 quarter-turn screws (marked with lock symbol)
Turn 90° counterclockwise until they "pop" up
Release Hidden Clips :
Start at front-right corner (near USB ports)
Use >nylon spudger at 45° angle
Lift Cover :
Raise rear edge first (20° angle)
Disconnect touchpad ribbon if replacing panel
🛡️ Preserving Resale Value
Risk
Prevention
Value Impact
Clip breakage
Work in 2cm increments
Intact clips = +15% value
Chassis scratches
Use microfiber worksurface
Flawless finish = +$25
Warranty void
Document pre-existing stickers
Transferable warranty = +30%
🔄 Common Issues & Solutions
Stuck Clips :
Apply 70% isopropyl alcohol with dental floss
Wait 1 minute before retrying
Misaligned Cover :
Verify all screws are in "pop-up" position
Check for missed clips near speakers
VIDEO
0:22 Bottom Case 1:52 Battery 2:31 SSD Storage 3:11 WiFi Card 3:45 Memory RAM 4:05 Heatsink Cooling Fan 5:12 Speakers 5:40 Unscrew Motherboard 6:52 Hinges 7:36 Take out Motherboard 7:53 DC Power Jack 8:08 IO USB Board 8:45 Trackapd 9:30 Palmrest Assembly 9:35 Keyboard 9:48 Power Button 10:20 Display Assembly 10:30 Front Bezel 11:19 Pull out Adhesive Strips 12:45 LCD Screen 12:56 Video Cable and WebCam 13:16 Back Cover
3. Dell Inspiron 16 5640 RAM Upgrade: DDR5 Performance & Resale Optimization
⚡ DDR5 Specifications
Supported RAM :
DDR5-4800 SODIMM (1.1V)
Max 32GB (2x16GB) via dual-channel
Recommended Kits :
Crucial CT16G48C40S5 (CL40)
Kingston KF548S38IB-16
🔧 Installation Process
Access Slots :
Remove bottom cover (9 captive screws)
Locate slots near cooling fan
Install Modules :
30° angle insertion (notch alignment)
Firm press until clips engage (audible click)
Verify Operation :
Check in BIOS (F2 at boot > Memory Settings)
Run sudo dmidecode -t memory (Linux)
💰 Selling Original RAM
Market Prices (2024) :
8GB DDR5: $30-$40
16GB DDR5: $55-$70
Best Platforms :
SellBroke (tech-specific)eBay "Dell OEM Tested" listings
💡 Creator Tip: 32GB kits sell 40% faster when marketed for Intel Iris Xe content creation workflows.
4. Dell Inspiron 16 5640 SSD Upgrade: Dual PCIe Slot Expansion Strategy
⚡ SSD Slot Configuration
Primary Slot :
PCIe Gen4 x4 NVMe (Up to 7,000MB/s)
Includes Dell heatsink pre-installed
Secondary Slot :
PCIe Gen3 x4 NVMe (Up to 3,500MB/s)
Ideal for storage expansion
🔧 Installation Process
Prepare Drives :
Update to latest Dell Storage Driver
Apply thermal pad if reusing heatsink
Install Primary SSD :
Align notch at 30° angle
Secure with M2x3mm screw (0.6Nm torque)
Configure RAID (Optional) :
Access BIOS (F2 at boot)
Enable Intel VMD Controller
💰 Selling Original SSDs
Secure Erase :
Use nvme format -s1 /dev/nvme0n1 (Linux)
Dell Data Wipe for Windows
Market Prices (2024) :
256GB OEM: $25-$35
512GB OEM: $40-$60
5. Dell Inspiron 16 5640 Battery Replacement: Safe Removal & Resale Certification
🔋 Battery Specifications
Part Number : Dell 0T7F6F (54Wh, 4-cell)Health Verification :
Run powercfg /batteryreport in Command Prompt
Check cycles via Dell SupportAssist
⚠️ Safe Removal Protocol
Pre-Discharge :
Drain to 30-50% charge (3.8V/cell optimal)
Disable in BIOS (Settings > Power Management)
Disconnect Safely :
Remove 4x T6 screws (marked with battery icon)
Use nylon tool on BT1 connector
Adhesive Release :
Apply iFixit heating pad (60°C for 2 minutes)
Use dental floss for clean separation
📜 Resale Certification
Document
Source
Value Impact
Dell FRU Letter
Service Tag Lookup +30% vs aftermarket
Health Report
SupportAssist Export
85%+ health = +$40
UN38.3 Test
ICAO Standards Required for shipping
✈️ Shipping Compliance
USPS Requirements :
International :
IATA Packing Instruction 965
Max 30% state of charge
6. Dell Inspiron 16 5640 Display Replacement: FHD+ IPS Panel Upgrade
📺 Display Specifications
Original Panel :
16" FHD+ (1920×1200) IPS Anti-Glare
300 nits brightness, 60Hz refresh rate
Compatible Upgrades :
120Hz IPS panels (drop-in replacement)
WUXGA (1920×1200) touchscreen options
🔧 Professional Replacement Process
Bezel Removal :
Heat edges with thermal pad (60°C for 2 minutes)
Start from bottom-right corner near hinge
Disconnect Components :
40-pin eDP cable (0.5mm pitch)
Webcam/microphone flex cable
Panel Removal :
4x M2×3mm screws (1.0Nm torque)
Note adhesive strip locations
💰 Display Resale Value Factors
Condition
Grading
Value Range
Perfect (no bleed)
Grade A
$120-$150
Minor backlight bleed
Grade B
$80-$110
1-2 dead pixels
Grade C
$50-$75
✅ Post-Installation Verification
Visual Inspection :
Uniformity test (solid color screens)
Pixel check with magnification
Functional Tests :
Refresh rate verification
Viewing angle assessment
7. Dell Inspiron 16 5640 Motherboard Access: Professional Removal & Resale Strategy
🔍 Motherboard Identification
Model Number : Dell 0T7F6F (13th Gen Intel Platform)Key Components :
Intel Processor (i5-1335U/i7-1355U)
Integrated Iris Xe Graphics
Dual M.2 NVMe slots
🛠️ Full Access Procedure
Complete Teardown :
Remove 22 screws (varying lengths)
Disconnect all ribbon cables (keyboard, touchpad, power button)
Cooling System Removal :
Dual heat pipe design
Note thermal pad thicknesses (1mm CPU, 0.5mm VRM)
Motherboard Extraction :
Lift at 30° angle from USB-C side first
Avoid flexing near RAM slots
💰 2024 Resale Value Guide
Configuration
Consumer Market
Business Market
i5-1335U Board
$180-$220
$250-$300
i7-1355U Board
$250-$300
$350-$400
With Working Ports
+15% Value
+25% Value
✅ Buyer Verification Steps
Component Testing :
Run sudo lspci -vv (Linux)
Dell ePSA diagnostics (F12 at boot)
Visual Inspection :
Check for capacitor damage
Verify BIOS password removal
8. Selling Dell Inspiron 16 5640 Parts: Premium Market Strategies
🏢 Corporate Buyer Tactics
Certification Benefits :
Dell ProSupport Plus transfers add 35% value
Include Data Wipe certificates
Government Channels :
Register at SAM.gov
List as GSA Advantage IT surplus
🎓 University Surplus Strategies
Campus Requirements :
Provide asset tag documentation
Include original Dell recovery USB
Top Channels :
UC Berkeley Surplus
University auction portals
🔍 SEO Listing Techniques
Title Formulas :
"Dell Inspiron 16 5640 [Part] - [FRU] - [Certification]"
Example: "Dell Inspiron 16 MB - i7-1355U - vPro Certified"
Key Tags :
#DellOEM #FRU0T7F6F #IrisXe
#CorporateReady #vProCertified
💰 2024 Price Benchmarks
Component
Consumer
Business
i7 Motherboard
$280
$375
54Wh Battery
$65
$90
FHD+ Display
$110
$140
