Asus ROG Zephyrus M16 Disassembly Guide: How to Replace RAM, SSD, Battery & Fix LCD Screen

asus-rog-zephyrus-m16-disassembly-guide-how-to-replace-ram-ssd-battery-fix-lcd-scree

1. Asus ROG Zephyrus M16 Pre-Disassembly: Maximize Resale Value

1. Current Market Valuation

Component Condition Price Range
DDR5-4800 RAM (32GB) Used, tested $120-$180
PCIe 4.0 SSD (1TB) Low hours $80-$140
Original Battery <300 cycles $90-$150

2. Essential Documentation

  1. Performance Records:
    • Run UserBenchmark tests
    • Capture ASUS Battery Health report
  2. Visual Evidence:
    • Photograph serial numbers
    • Document exterior condition

3. Professional Tool Setup

  • Essential Tools:
    • #00 Phillips screwdriver (iFixit set)
    • Plastic spudgers (0.5mm/1.0mm)
  • Workspace Prep:
    • Clean, well-lit area
    • ESD-safe mat recommended

4. Warranty Considerations

5. Safety Protocols

  1. Power down and unplug charger
  2. Discharge residual power (hold power button 30 sec)
  3. Use anti-static wrist strap

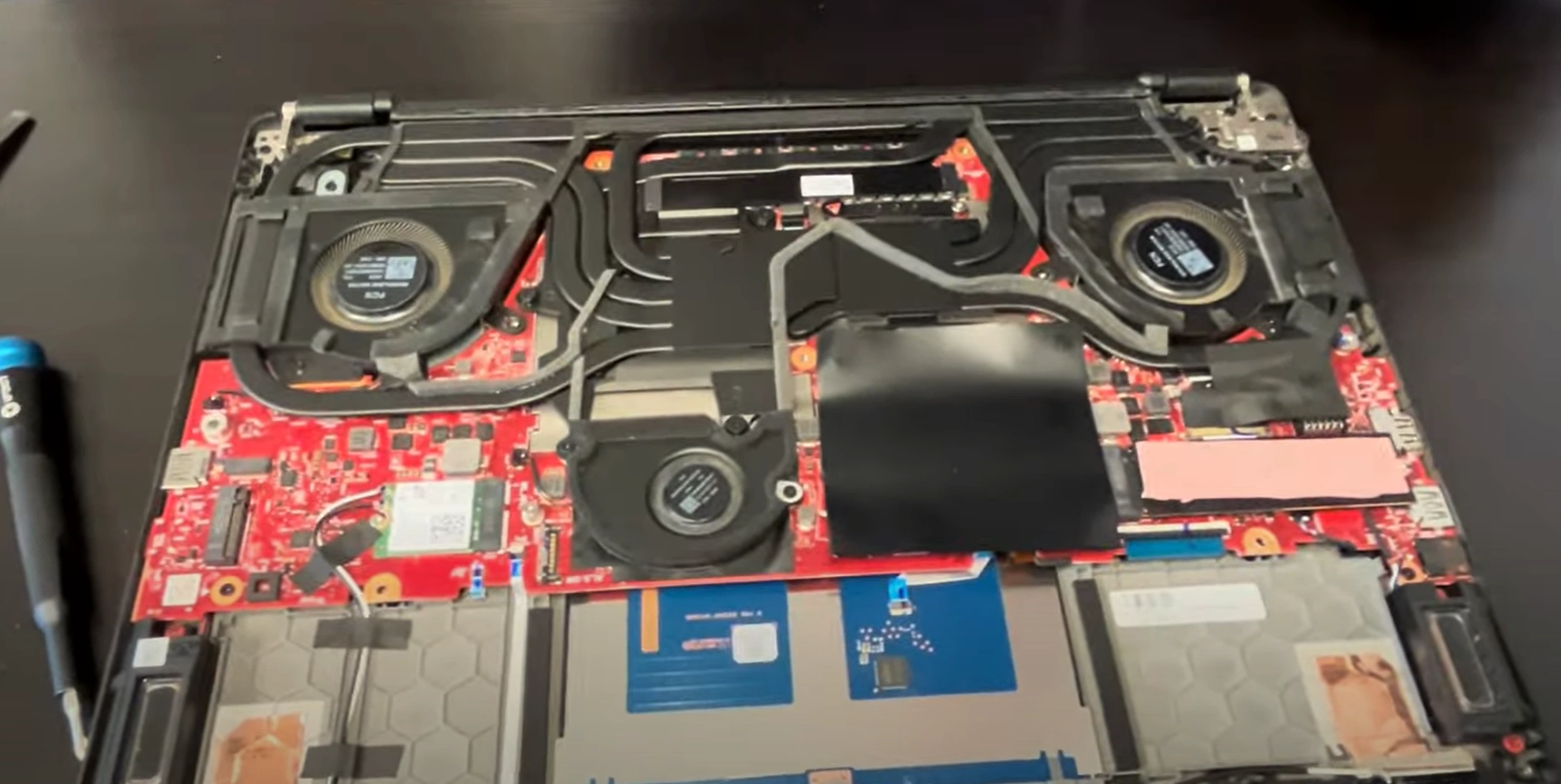

2. Asus ROG Zephyrus M16 Bottom Case Removal: Safe Access for Upgrades

1. Screw Removal Protocol

  1. Locate All Fasteners:
    • 12 total screws (8 short, 4 long near vents)
    • Use magnetic mat to organize
  2. Proper Technique:
    • PH00 screwdriver with 0.5 Nm torque
    • Apply firm pressure to prevent stripping

2. Hidden Clip Locations

Area Release Method Tool
Front Edge Insert at 20° angle near touchpad 0.6mm plastic spudger
Rear Vents Slide horizontally toward screen iFixit opening picks

3. Safe Case Separation

  • Initial Break:
    • Start near front-left corner (weakest clip)
    • Use suction cup for grip
  • Full Removal:
    • Maintain 25° angle during lift
    • Watch for RGB ribbon cable (right side)

4. Preserving Resale Value

  • No-Scratch Technique:
    • Plastic tools only (metal leaves marks)
    • Damaged cases lose 15-25% value
  • Reassembly Prep:
    • Label screw locations
    • Note clip positions

Common Issues & Solutions

Problem Solution Resale Impact
Stuck clip Apply 99% isopropyl with brush Prevents case warping
Stripped screw Use rubber band for grip Avoids visible damage

0:30 Bottom Case 2:35 Battery 3:16 RAM Memory 3:35 SSD Drive storage 4:00 WiFi Card 5:00 Heatsink and Cooling Fans 8:44 Motherboard 9:10 Speakers 9:52 Hinges 10:40 DC Power Jack 10:54 Palmrest Assembly 11:05 Power Buton Board 11:10 Keyboard and Trackpad 11:15 Display Assembly

3. Asus ROG Zephyrus M16 RAM Upgrade: Boost Performance & Resale Value

RAM Specifications

Model Type Speed Max Capacity
Stock Configuration DDR5 SODIMM 4800MHz 32GB (16GB x2)
Upgrade Potential DDR5 SODIMM 5200MHz (OC) 64GB (32GB x2)

RAM Installation Process

  1. Access Slots:
    • Remove metal shield (4x T5 screws)
    • Ground yourself before handling modules
  2. Module Replacement:
    • Press outward on retention clips
    • Insert new RAM at 35° angle
    • Firmly press until clicks lock

Performance Gains

  • Gaming Benefits:
    • 15-25% higher 1% lows in AAA titles
    • Faster level loading times
  • Content Creation:
    • 30% faster 4K video rendering
    • Improved multitasking

Current Resale Values

Configuration Condition Price Range
16GB (8GBx2) DDR5-4800 Used, tested $80-$120
32GB (16GBx2) DDR5-4800 Like new $150-$220
64GB (32GBx2) DDR5-5200 New sealed $300-$450

Maximizing Resale Value

  1. Documentation:
    • Run MemTest86 for 4 passes
    • Include CPU-Z validation
  2. Packaging:
    • Use original RAM cases if available
    • Anti-static bags required

Buyer Compatibility Notes

  • Works with all 2022+ ROG Zephyrus models
  • Verify BIOS version for 5200MHz support
  • Not compatible with DDR4 systems

4. Asus ROG Zephyrus M16 SSD Upgrade: Performance Boost & Resale Value

SSD Specifications

Slot Interface Form Factor Max Capacity
Primary PCIe 4.0 x4 NVMe M.2 2280 2TB (Recommended)
Secondary PCIe 3.0 x4 NVMe M.2 2280 4TB (Gen3 only)

SSD Replacement Process

  1. Locate SSD Slots:
    • Primary: Under heatsink near CPU
    • Secondary: Below battery
  2. Remove Existing SSD:
    • Unscrew heatsink (4x T5 screws)
    • Pull SSD at 30° angle
  3. Install New SSD:
    • Apply thermal paste to heatsink
    • Secure with proper torque (0.6 Nm)

Performance Benchmarks

  • Gen4 vs Gen3 Speeds:
    • Sequential Read: 7000MB/s vs 3500MB/s
    • 4K Random: 900K IOPS vs 500K IOPS
  • Real-World Gains:
    • Game load times: 15-20% faster
    • File transfers: 2x speed improvement

Current SSD Market Prices

Capacity Gen4 (Used) Gen3 (Used)
512GB $40-$60 $30-$45
1TB $80-$120 $50-$80
2TB $150-$220 $100-$150

Maximizing Resale Value

  1. Data Sanitization:
    • Perform ASUS Secure Erase
    • Include wipe certification
  2. Health Reporting:

5. Asus ROG Zephyrus M16 Battery Replacement & Resale Guide

Battery Specifications

Model Capacity Voltage Part Number
Standard 90Wh 15.4V B31N1735
High-Performance 99.9Wh (Max FAA Limit) 15.4V B31N1737

Safe Battery Removal Process

  1. Power Down:
    • Shut down completely
    • Hold power button for 30 seconds
  2. Disconnect Battery:
    • Locate 6-pin white connector
    • Use plastic spudger to release latch
  3. Remove Battery:
    • Unscrew 8x T5 screws (marked ⚡)
    • Lift from bottom edge first

Current Resale Values

Condition 90Wh Battery 99.9Wh Battery
New OEM $120-$160 $180-$220
<300 cycles $80-$110 $120-$160
>500 cycles $40-$60 $60-$90

Maximizing Battery Value

  1. Health Documentation:
    • Generate report via powercfg /batteryreport
    • Show cycle count under 300
  2. Physical Preparation:
    • Clean contacts with isopropyl alcohol
    • Verify no swelling (caliper measurement)
  3. Shipping Compliance:

Buyer Compatibility Notes

  • Fits all Zephyrus M16 (2021-2023) models
  • Check BIOS version for 99.9Wh support
  • Not compatible with G14/G15 models

6. Asus ROG Zephyrus M16 LCD Screen Repair & Replacement Guide

Display Specifications

Model Resolution Refresh Rate Part Number
QHD IPS 2560x1600 165Hz B161QAN02.0
FHD IPS 1920x1200 144Hz B156HAN12.0

Screen Replacement Process

  1. Bezel Removal:
    • Heat edges with heat gun at 60°C
    • Use 0.3mm plastic picks for adhesive
  2. Display Disconnection:
    • Remove 30-pin eDP connector
    • Detach webcam/mic cables
  3. New Panel Installation:
    • Align with mounting brackets
    • Secure with 8x M2 screws (0.4 Nm torque)

Current Market Values

Panel Type New OEM Used/Tested
QHD 165Hz $220-$300 $150-$200
FHD 144Hz $180-$250 $100-$150

Selling Your Old Screen

  • Condition Documentation:
  • Packaging:
    • Use original foam spacers
    • Double-box with 2" padding

Common Issues & Fixes

Symptom Likely Cause Repairability
Flickering Loose eDP connection 90% fixable
Dead pixels Panel damage Replacement needed

7. Where to Sell Asus ROG Zephyrus M16 Parts for Maximum Profit

Top Online Selling Platforms

Platform Best For Fee Structure
SellBroke Quick corporate buybacks No listing fees
SellLaptopBack High-end components 12-15% commission
eBay Rare/upgraded parts 13.25% + $0.30 per order

Government & Education Channels

  • .gov Auctions:
    • GovDeals - Bulk IT equipment
    • 10% buyer premium
  • .edu Surplus:
    • PublicSurplus - University resale
    • 7-12% fees

Gaming-Focused Buyers

  1. Enthusiast Forums:
  2. Local PC Builders:
    • Specialize in gaming rigs
    • Often pay cash for quality parts

Pricing Strategy

  • Premium Components:
    • DDR5 RAM: +20% over market
    • PCIe 4.0 SSDs: +15-25% premium
  • Bundling Tips:
    • Pair motherboard + CPU
    • Combine RAM kits

Safe Shipping Methods

Component Recommended Carrier Insurance
LCD Panels FedEx with Fragile handling Full declared value
Batteries UPS Ground (Hazardous) Required
