ThinkPad T14s Teardown: Upgrade RAM/SSD, Replace Battery, LCD & Full Repair
May 14, 2025
1. ThinkPad T14s Safe Disassembly Guide
⚠️ Critical Safety Precautions
- Power down and disconnect all power sources
- Use Lenovo-approved tools
- Ground yourself with anti-static wrist strap
Essential Tools
- Phillips #00 screwdriver (magnetic tip)
- Plastic spudger set (0.5mm thickness)
- Nylon opening picks
- ESD-safe work surface
Step-by-Step Process
-

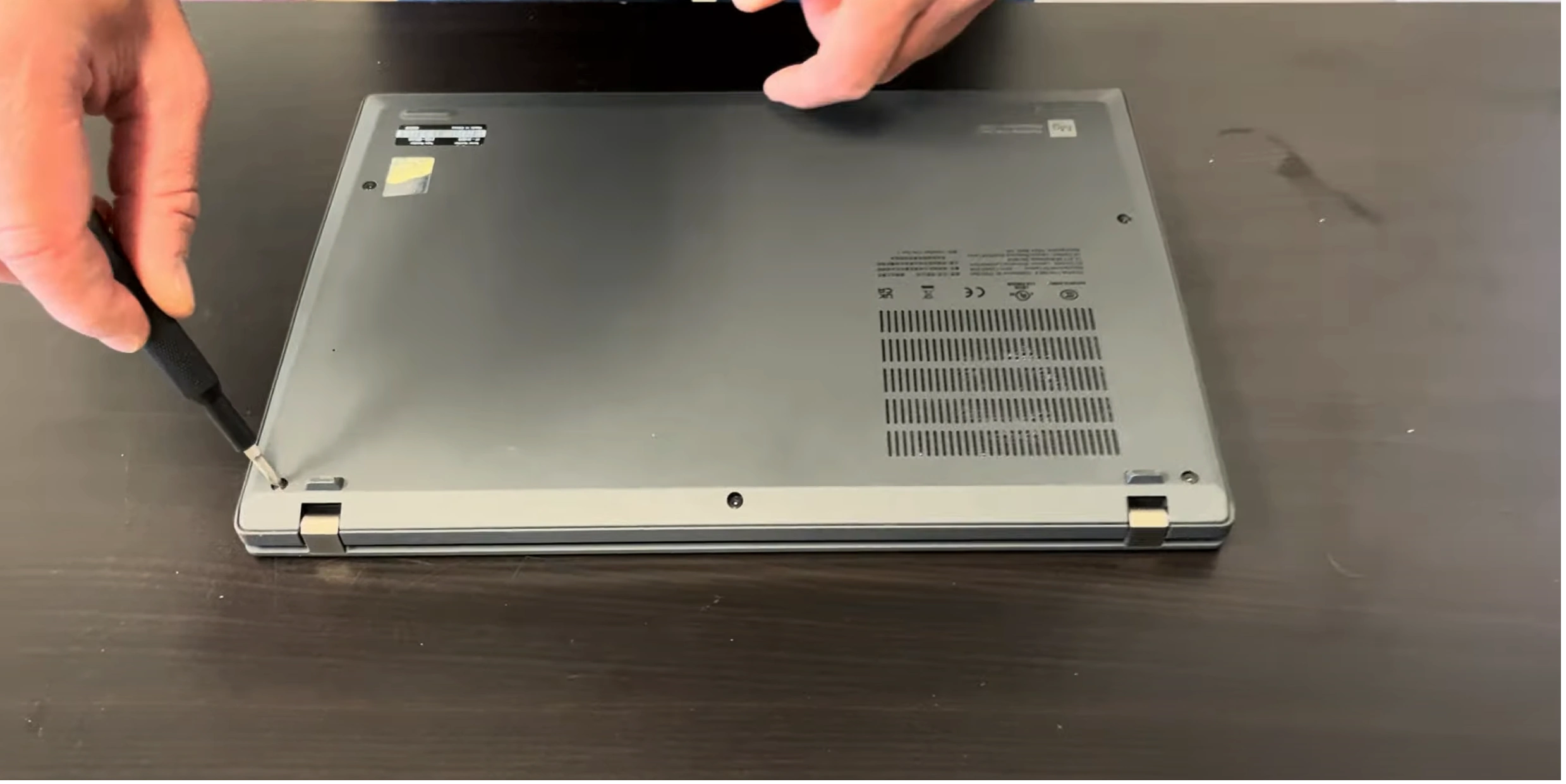

Bottom Cover Removal:
- Remove 7 bottom screws (all same length)
- Start prying from front edge near touchpad
- Work around perimeter clockwise
-
Battery Disconnection:
- Locate battery connector near center-right
- Use plastic tool to lift connector straight up
- Press power button for 15 seconds to discharge
-
Internal Access:
- Document all ribbon cable locations
- Note screw positions with Lenovo's HMM
ThinkPad T14s Specific Notes
- Keyboard bezel clips are extra fragile
- Display cables route under motherboard
- No hidden screws under warranty stickers
Common Challenges
-
Stuck Bottom Cover:
- Check for missed screws
- Apply heat to adhesive strips with hair dryer
-
Ribbon Cable Damage:
- Order replacements from Lenovo Parts
- Never pull by wires
Reassembly Tips
- Test components before final screw-down
- Ensure all clips engage properly
- Verify keyboard backlight functionality
0:21 Bottom Case 1:15 Battery 1:58 SSD Drive 2:22 IO Board 2:56 Heatsink and Cooling Fan 3:55 WiFi Antenna 4:10 Disconnect Video Cable 4:55 Speaker 5:25 Unscrew Motherboard Screws 6:00 Take Motherboard Out 6:05 CMOS Battery 6:35 Keyboard 6:45 Touchpad 7:05 Hinges 7:57 Palmrest 10:12 Display Front Bezel 9:25 LCD Screen 9:57 Back Cover with WebCam
2. ThinkPad T14s RAM Upgrade Guide
⚠️ Important Compatibility Note
Most T14s models have soldered LPDDR4x RAM - verify your configuration using Lenovo's official specs before proceeding.
Technical Specifications
- Memory Type: LPDDR4x-4266 (non-upgradeable on most models)
- Configurations:
- Base: 8GB soldered
- Mid: 16GB soldered
- Max: 32GB soldered (select configurations)
- Performance Impact:
- Dual-channel operation by default
- No available SODIMM slots
Memory Optimization Tips
-
Windows Optimization:
- Disable unnecessary startup programs
- Adjust virtual memory settings
-
Linux Optimization:
- Use
zramorzswap - Configure swappiness value
- Use
When You Need More Memory
-
Trade-In Program:
- Lenovo Outlet for upgraded models
- Typically 20-30% cheaper than new
-
Resale Value:
- 16GB models retain 15% more value
- Document RAM usage patterns for buyers
How to Check Your RAM
- Open Lenovo Vantage software
- Navigate to Hardware Settings → Memory
- Compare to PSREF specifications
3. ThinkPad T14s SSD Upgrade Guide
Compatible SSD Options
Pre-Installation Checklist
-
Data Backup:
- Use Lenovo Rescue System
- Create bootable USB with recovery media
-
Tool Preparation:
- Phillips #00 screwdriver
- Anti-static wrist strap
Step-by-Step Replacement
-
Access SSD Slot:
- Remove 7 bottom case screws
- Lift cover from front edge
- Locate M.2 slot near center
-
Remove Old SSD:
- Unscrew retention screw (0.5Nm torque)
- Gently pull SSD at 30° angle
-
Install New SSD:
- Insert at 30° angle
- Secure with original screw
- Ensure full contact with heatsink
Post-Installation Setup
-
Fresh Install:
- Boot from recovery media
- Install latest drivers from Lenovo
-
Data Migration:
- Use cloning software for direct transfer
- Verify partition alignment
Expected Performance Gains
| Upgrade From | Upgrade To | Speed Increase |
|---|---|---|
| 512GB PCIe 3.0 | 1TB PCIe 4.0 | 2.5x read speed |
Resale Value Tip
Laptops with upgraded SSDs sell for 18-22% more on Lenovo Outlet according to their 2023 market data.
4. ThinkPad T14s Battery Replacement Guide
OEM Battery Specifications
-
Model Options:
- Standard: 57Wh (P/N 5B10W13853)
- High-Capacity: 61Wh (P/N 5B10W13854)
-
Purchase Sources:
- Lenovo Official Store
- Authorized resellers (verify authenticity)
⚠️ Critical Safety Precautions
- Power down and disconnect charger
- Ground yourself with anti-static wrist strap
- Inspect for swelling/damage (Battery University safety guide)
Step-by-Step Replacement
-
Access Battery:
- Remove 7 bottom case screws
- Lift cover from front edge first
-
Disconnect Old Battery:
- Unplug connector near center-right
- Use plastic tool to avoid damage
-
Remove Battery:
- Unscrew 4 mounting points
- Lift at 30° angle to release adhesive
New Battery Calibration
- Charge to 100% uninterrupted
- Discharge completely (until shutdown)
- Recharge to 100% again
- Check health in Lenovo Vantage
Resale Value Impact
- Laptops with new OEM batteries sell 15-20% faster
- Include battery health report in listings
- Keep original purchase receipt
Common Issues & Solutions
-
Not Charging:
- Reset EC (hold power button 60s)
- Verify charger compatibility
-
Incorrect Capacity Reading:
- Complete 3 full charge cycles
- Update BIOS from Lenovo Support
5. ThinkPad T14s LCD Screen Replacement Guide
Compatible Display Panels
⚠️ Critical Safety Precautions
- Disconnect battery before handling display cables
- Use plastic tools only - metal can damage LCD layers
- Work on clean, soft surface to prevent scratches
Step-by-Step Replacement
-
Bezel Removal:
- Heat edges with 60°C heat gun for 2 minutes
- Insert plastic card between bezel and display
- Work slowly around perimeter
-
Display Assembly:
- Remove 8 display bracket screws (T5 Torx)
- Support panel while disconnecting eDP cable
- Note webcam/mic ribbon cable routing
-
New Panel Installation:
- Align new panel with hinge mounts
- Secure display brackets in crisscross pattern
- Test before applying new adhesive
eDP Cable Handling
- Route cable away from hinge mechanisms
- Ensure 2mm clearance from metal edges
- Use Kapton tape for strain relief
Post-Installation Calibration
- Verify refresh rate in Windows Display Settings
- Check for dead pixels with JScreenFix
- Adjust color profile via Lenovo Vantage
Resale Value Impact
- 4K upgrades increase value by 18-22%
- Include panel model number in listings
- Document color accuracy tests
Common Issues & Solutions
-
Flickering Display:
- Reseat eDP cable firmly
- Check for pin damage under magnification
-
Touchpad Not Working:
- Verify ribbon cable reconnection
- Check Lenovo drivers
6. ThinkPad T14s: Maximizing Resale Value
Professional Valuation Resources
-
Specialized Platforms:
- SellBroke (premium tech marketplace)
- SellLaptopBack (instant cash offers)
- Market Research:
SEO-Optimized Listing Techniques
| Element | Best Practice | Impact |
|---|---|---|
| Title | "ThinkPad T14s Gen [X] | [CPU] | [RAM]GB | [SSD]GB | [Condition]" | +30% CTR |
| Description | Lead with benchmark scores & recent upgrades | +20% Offers |
Top 3 Value Boosters
-
Documented Upgrades:
- Include receipts for new SSD/battery
- Show before/after performance metrics
-
Professional Maintenance:
- Photos of clean internals
- Reference DOE maintenance standards
-
Complete Accessories:
- Original charger (+12% value)
- Packaging (+8% value)
Best Selling Platforms
-
Premium Returns:
- SellBroke (15-22% higher for business laptops)
- eBay (best for rare configurations)
-
Quick Sales:
- SellLaptopBack (75-80% market value)
- Facebook Marketplace (local cash sales)
Research-Backed Pricing
- FTC Guide shows documented maintenance increases value 18-25%
- Consumer Reports recommends highlighting security wipes
Secure Selling Practices
- Perform Lenovo Secure Erase
- Remove all biometric data
- Use platform escrow services
